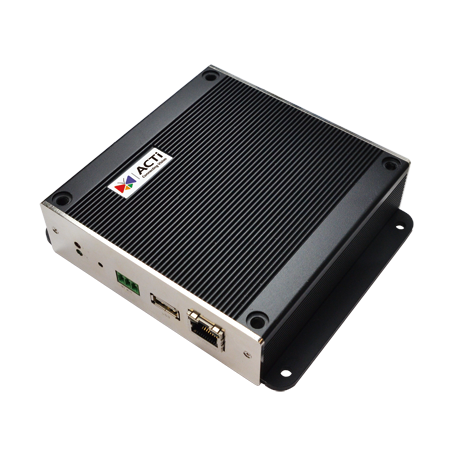

ECD-1100 Video Decoder

ECD-1100 Video Decoder

SKU: ECD-1100 Download PDF

Variant:
  • ECD-1100 Video Decoder
Now $506.00
BEFORE   Now $506.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

The ECD-1100 is a versatile video decoder designed for high-resolution video decoding and public viewing applications It supports a maximum of 16 video devices, including 16 cameras, and has the capability of local decoding up to 2MP and remote decoding up to 12MP The device provides a responsive web client, event trigger, response and notification features It has a user-friendly interface with options for live video streams and digital zoom.

The ECD-1100 is compliant with ONVIF Profile S, ensuring compatibility with various ACTi cameras and encoders.

Features and Benefits:

    •Maximum resolution: Local - up to 2MP; Remote - up to 12MP.

    •Supports up to 16 video devices and cameras.

    •User-friendly web client for real-time monitoring.

    •PTZ control features allow for speed control and preset tours.

    •Compatible with ACTi cameras and encoders.

    •Event trigger capabilities for network loss and motion detection.

    •Multi-lingual support for diverse users.

    •Real-time status monitoring via remote browser.

    •Video decoding for security systems.

    •Public viewing applications.

Specifications:

 Maximum Number of Video Devices 16
 Maximum Resolution Local: up to 2MP; Remote: up to 12MP
 Supported Screen Resolution HDMI: 1080p
 License License required: No, Free License: 16
 Video Source Live video streams from IP Camera, Software NVR, Standalone NVR
 Compression H.264
 Maximum Frame Rate vs. Resolution 30 fps at 1920 x 1080; 30 fps at 720 x 480; 25 fps at 720 x 576; 30 fps at 640 x 480
 Audio Type 1-way
 Network Protocol & Service TCP, UDP, IP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP
 Ethernet Port 1 x RJ-45 connector
 Power Source DC 12V, PoE Class 3 (IEEE802.3af)
 Power Consumption 8.5 W (PoE), 7 W (DC)
 Weight 566g (1.25lb)
 Dimensions (W x H x D): 135mm x 114mm x 33mm (5.3" x 4.5" x 1.3")
 Operating Temperature 0°C ~ 50°C (32°F ~ 122°F)
 Operating Humidity 10% - 85% RH
 Web Browser IE 11
 Bundled Accessories Power Adapter, Pole Mount
