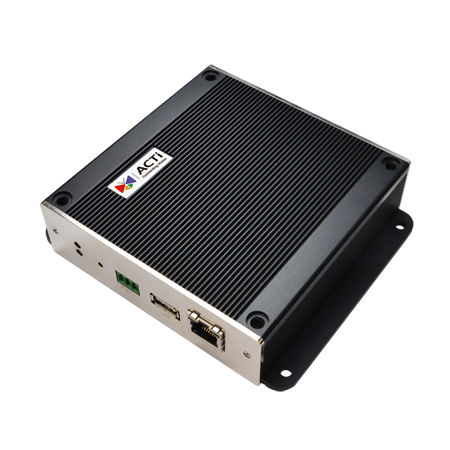

ECD-1000 Video Decoder

ECD-1000 Video Decoder

SKU: ECD-1000 Download PDF

Variant:
  • ECD-1000 Video Decoder
Now $506.00
BEFORE   Now $506.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

The ECD-1000 Video Decoder supports a maximum of 16 video devices and is designed for applications such as digital signage and public viewing It can decode video from IP cameras and supports resolutions up to 12MP remotely and 2MP locally The device offers features like digital zoom, event triggers for network loss, and built-in analytics, making it versatile for various usage scenarios With a maximum frame rate of 30 fps at 1920 x 1080 resolution, the decoder ensures high-quality video output through HDMI and composite video interfaces, making it ideal for high-definition displays.

The device has a user-friendly web client interface and operates under various network protocols including TCP, UDP, and RTSP.

Features and Benefits:

    •Supports up to 16 video devices and cameras.

    •Maximum resolution of 2MP local and 12MP remote.

    •Event trigger response notifications for various events.

    •Digital zoom and PTZ control functionalities.

    •Real-time status monitoring accessible via remote browser.

    •Multi-language support.

    •Digital Signage.

    •Video Decoding.

    •Public Viewer.

Specifications:

 Maximum Number of Video Devices 16
 Maximum Number of Cameras 16
 Maximum Number of Clients Local: 1, Remote: 2
 Supported Screen Resolution HDMI: 1080p, Composite Video: NTSC/PAL
 License Required (16 free licenses available)
 Compression H.264
 Maximum Frame Rate vs. Resolution 30 fps at 1920 x 1080, 30 fps at 720 x 480, 25 fps at 720 x 576, 30 fps at 640 x 480
 Network Protocol & Service TCP, UDP, IP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP
 Ethernet Port 1 x RJ-45 connector
 Power Source DC 12V, PoE Class 3 (IEEE802.3af)
 Power Consumption 8.5 W (PoE), 7 W (DC)
 Weight 566g (1.25lb)
 Dimensions (W x H x D): 135mm x 114mm x 33mm (5.3" x 4.5" x 1.3")
 Starting Temperature 0°C ~ 50°C (32°F ~ 122°F)
 Operating Temperature 0°C ~ 50°C (32°F ~ 122°F)
 Operating Humidity 10% - 85% RH
