Description:

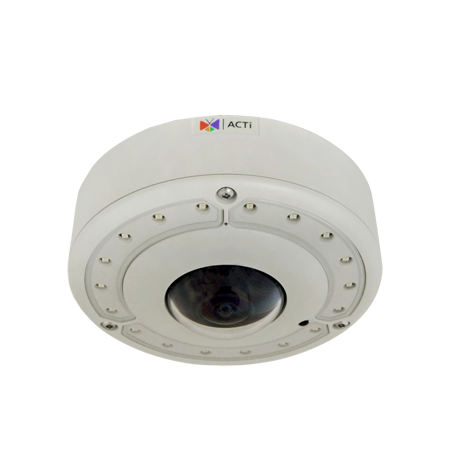

The B76A is a 12 Megapixel hemispheric dome camera designed for outdoor use It features 4K Ultra HD resolution, providing superior low light sensitivity with an adaptive IR LED The camera is capable of performing in extreme environments with a wide dynamic range of up to 130 dB and offers a 360°/180° panorama view with dewarped streaming options It includes built-in analytics for advanced surveillance functionalities.

Features and Benefits:

    •12 Megapixel resolution with 4K Ultra HD capability.

    •Extreme WDR (130 dB) for high dynamic range.

    •Superior low light performance with minimum illumination of 0.003 lux.

    •Various viewing modes including Fisheye, Dewarped, and ePTZ view.

    •Built-in analytics for object detection and tracking.

    •Weatherproof and vandal-proof design with IP68 and IK10 ratings.

    •Wide operating temperature range from -40°C to 50°C.

    •Outdoor surveillance and monitoring.

    •Intelligent video analytics for security applications.

    •High detail monitoring in low light conditions.

Specifications:

 Product Type Hemispheric Dome
 Maximum Resolution 12MP
 Image Sensor Progressive Scan CMOS
 Sensor Size 1/1.7 inch
 Effective Pixels 4072(H) X 3046(V) (12.4 MP)
 Day / Night Yes
 Low Light Sensitivity Superior
 Minimum Illumination Color: 0.003 lux at F2.8; B/W: 0 lux (IR LED on)
 IR Working Distance 20m
 Electronic Shutter 1/5-1/16000 second (both manual and auto mode)
 Compression H.264 (Baseline/ Main/ High profile), MJPEG
 Video Analytics Includes object detection, tampering detection, and other intelligent features
 Power Source PoE Class 3 (IEEE802.3af), DC 12V
 Power Consumption 12.95 W (PoE, IR on)
 Dimensions (Ø x H): 152.00mm x 71.00mm (6.0" x 2.8")
 Environmental Casing Weatherproof (IP68), Vandal proof (IK10)
 Starting Temperature -40°C ~ 50°C (-40°F ~ 122°F)
 Approvals CE Class B, FCC Class B, EAC, CB, IP66, IK10, NEMA 4X, UL Listed (UL 60950-1)
