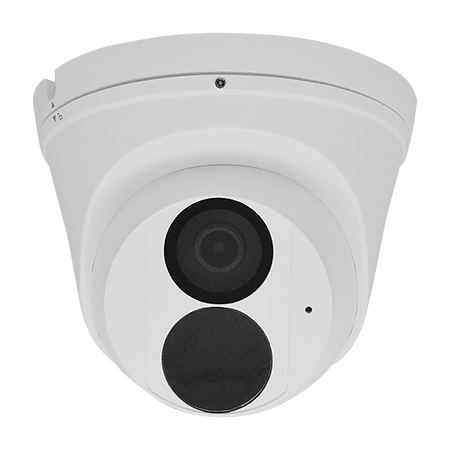

Z75 - 5 Megapixel Day & Night with Superior Low Light Sensitivity and Adaptive IR LED

Z75 - 5 Megapixel Day & Night with Superior Low Light Sensitivity and Adaptive IR LED

SKU: Z75 Download PDF

Variant:
  • Z75 - 5 Megapixel Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
Now $374.00
BEFORE   Now $374.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

This product is a turret camera featuring a high-resolution 5 Megapixel sensor, designed with superior low light sensitivity and adaptive IR LED for night time functionality It includes a fixed lens with a focal length of f28mm and an aperture of F16, delivering a wide dynamic range (WDR) of 120dB and super wide-angle views The camera also offers built-in analytics for event detection and notifications, making it suitable for outdoor environments.

Features and Benefits:

    •5 Megapixel image sensor for high resolution.

    •Adaptive IR LED for enhanced night vision.

    •Superior low light sensitivity.

    •Wide dynamic range for better image quality.

    •Built-in analytics for smart event detection.

    •Weatherproof and vandal-proof for durability in outdoor settings.

    •Use in outdoor surveillance and security systems.

    •Suitable for residential and commercial security monitoring.

Specifications:

 Product Type Turret
 Maximum Resolution 5MP
 Application Environment Outdoor
 Image Sensor Progressive Scan CMOS
 Sensor Size 1/2.7 "
 Day / Night Yes
 Low Light Sensitivity Superior
 Minimum Illumination Color: 0.003 lux at F1.6 (AGC on); B/W: 0 lux (IR LED on)
 Mechanical IR Cut Filter Yes
 IR LED Adaptive IR LED (850 nm)
 IR Working Distance 30m
 S/N Ratio 75 dB
 Lens Focal Length Fixed focal, f2.8mm
 Aperture F1.6
 Iris Fixed iris
 Horizontal Viewing Angle 112.9°
 Vertical Viewing Angle 59.1°
 Viewing Angle Adjustment Pan: 0°-360°, Tilt: 0°-90°, Rotation: 0°-360°
 Video Compression H.265 Adaptive Stream, H.264, MJPEG
 Maximum Frame Rate vs. Resolution 25 fps at 2880 x 1620, 25 fps at 2560 x 1440, 30 fps at 2304 x 1296, 30 fps at 1920 x 1080, 30 fps at 1280 x 720, 30 fps at 720 x 576, 30 fps at 640 x 360
 Multi-Streaming Simultaneous dual streams
 Bit Rate 128Kbps - 16Mbps (per stream)
 Wide Dynamic Range Superior WDR (120 dB)
 Digital Noise Reduction 2D + 3D DNR
 Privacy Mask 4 configurable regions
 Built-in Analytics People Detection, Vehicle Detection, Tampering Detection, Object Line Crossing Detection, Intrusion Detection
 Image Orientation Flip, Mirror, Rotation
 Audio Type 1-way, Built-in Microphone
 Audio Compression G.711
 Network Protocol & Service TCP, UDP, DHCP, DNS, etc.
 Ethernet Port 1 x Ethernet (10/100 Base-T)
 Event Trigger Video motion detection, Sound detection
 Event Response E-mail notification, Upload snapshot to FTP, Save video or snapshot to storage
 Integration ONVIF Compliant
 Web Browser Compatibility IE 11, Google Chrome, Microsoft Edge, Firefox
 Power Source DC 12V, PoE (IEEE802.3af)
 Power Consumption 4.5 W (PoE)
 Dimensions (Ø x H): 118mm x 95mm
 Environmental Casing Weatherproof (IP68), Vandal proof (IK10)
 Corrosion Protection Optional for project request
 Mount Type Wall Mount, Pole Mount, Pendant
 Operating Temperature -30°C ~ 60°C
 Approvals CE Class B, FCC Class B, IP68, IK10, UL Listed
 Color White
