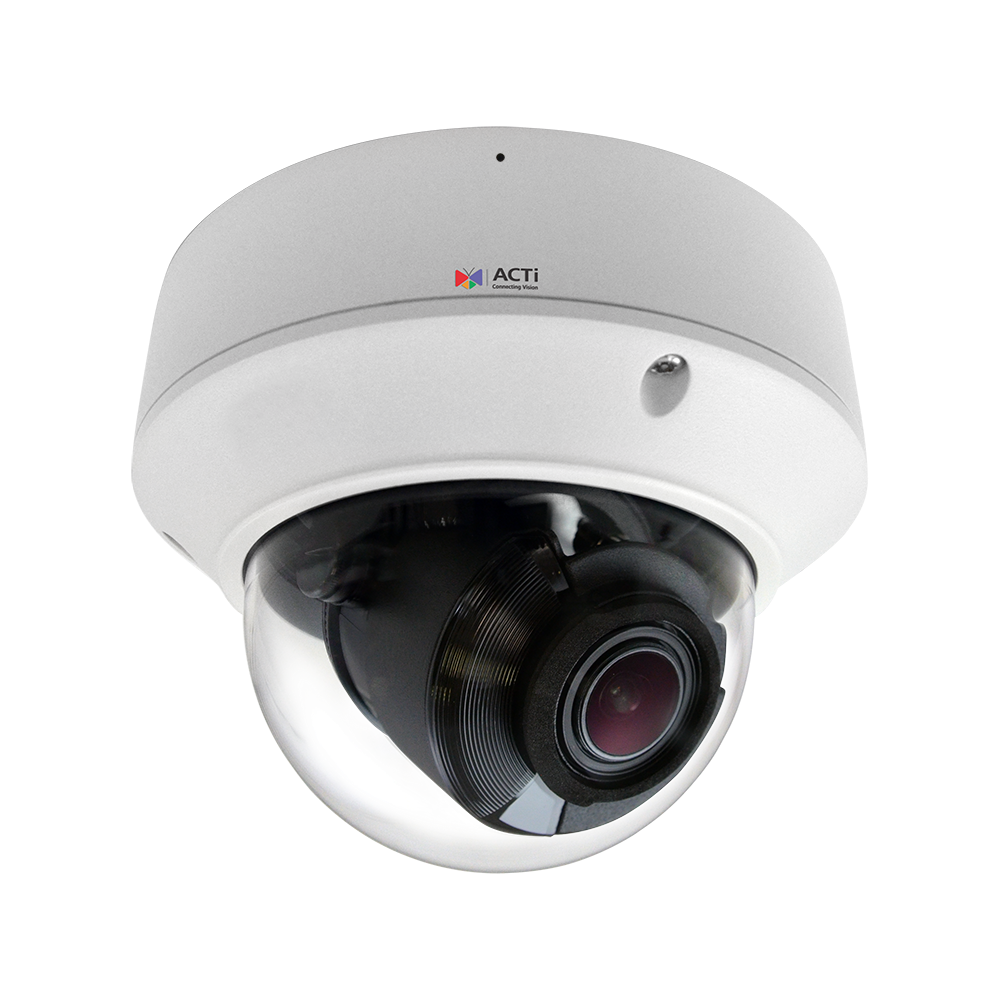

Z810 8 Megapixel Day & Night with Superior Low Light Sensitivity and Adaptive IR LED

Z810 8 Megapixel Day & Night with Superior Low Light Sensitivity and Adaptive IR LED

SKU: Z810 Download PDF

Variant:
  • Z810 8 Megapixel Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
Now $994.00
BEFORE   Now $994.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

The Z810 camera is equipped with an 8 Megapixel resolution and features superior low light sensitivity alongside an adaptive IR LED for optimal performance in varying light conditions It offers superior wide dynamic range measurement at 120dB and ensures functionality in outdoor environments With built-in analytics for event triggers, responses, and notifications, the camera also supports various network protocols and services for seamless integration into existing systems.

Additionally, its advanced image sensor, progressive scan CMOS technology, and extensive zoom capabilities make it ideal for detailed monitoring.

Features and Benefits:

    •8MP maximum resolution for crystal clear images.

    •Adaptive IR LED for better nighttime visibility.

    •Superior Wide Dynamic Range (120dB) for enhanced image quality in varying light.

    •Built-in analytics for event detection and notification.

    •Weatherproof and vandal-proof metal casing (IP68, IK10).

    •Multiple streaming capabilities with simultaneous triple streams.

    •Real-time clock (RTC) for accurate time-stamping.

    •Ideal for outdoor surveillance and monitoring.

    •Suitable for environments requiring extensive security measures.

    •Can be used in applications needing advanced image processing and analytics.

Specifications:

 Product Type Zoom Dome
 Application Environment Outdoor
 Image Sensor Progressive Scan CMOS
 Sensor Size 1/2.8 "
 Day / Night Yes
 Low Light Sensitivity Superior
 Minimum Illumination Color: 0.003 lux at F1.6 (AGC on); B/W: 0 (IR LED on)
 Mechanical IR Cut Filter Yes
 IR LED Adaptive IR LED x 3 (850 nm)
 IR Working Distance 40m
 Electronic Shutter 1-1/100000 second (manual mode); 1-1/100000 second (auto mode)
 S/N Ratio 75 dB
 Lens Zoom, f2.8-12mm
 Aperture F1.6
 Zoom Ratio 4.3x optical zoom
 Zoom Application Camera Installation
 Focus Auto focus
 Horizontal Viewing Angle 99.8° - 31.1°
 Vertical Viewing Angle 53.1° - 17.7°
 Viewing Angle Adjustment Pan: 0°-355°, Tilt: 0°-80°, Rotation: 0°-355°
 Video Compression H.265 Adaptive Stream, H.264, MJPEG
 Maximum Frame Rate vs. Resolution 20 fps at 3840 x 2160; 30 fps at multiple resolutions
 Multi-Streaming Simultaneous triple streams
 Wide Dynamic Range Superior WDR (120 dB)
 Image Enhancement White Balance, Backlight compensation, Brightness, Contrast
 Digital Noise Reduction 2D + 3D DNR
 Privacy Mask 4 configurable regions
 Text Overlay Yes
 Built-in Analytics Multiple detection features including people and vehicle detection
 Image Orientation Flip, Mirror, Rotation
 Audio Type 2-way, Built-in Microphone, Line-in, Line-out
 Network Protocol & Service Various protocols including IPv4, UDP, RTSP, and more
 Ethernet Port 1 x Ethernet (10/100 Base-T)
 Security IP address filtering, HTTPS encryption
 Event Trigger Multiple detection triggers including motion and sound detection
 Event Response Email notifications and video storage options
 Integration ONVIF Compliant
 Web Browser Compatible with multiple browsers including IE, Chrome, Edge
 Digital Input/Output 1/1 with Terminal block
 Operating Button Reset Button
 Power Source DC 12V, PoE (IEEE802.3af)
 Dimensions (Ø x H): 148mm x 111.4mm
 Corrosion Protection Optional for project request
 Operating Temperature -30°C ~ 60°C
 Color White
 Material Metal and Plastic
