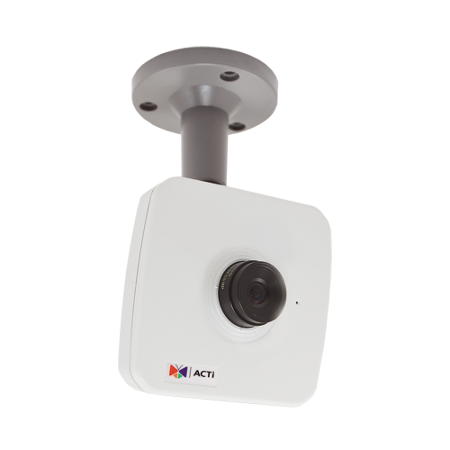

E11 1 Megapixel Fixed Lens Camera

E11 1 Megapixel Fixed Lens Camera

SKU: SKU: E11   Download PDF

Qty:
Regular price Now $169.00   Web pricing policy
Regular price BEFORE   Sale price Now $169.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information
Resources

Description:

This 1 Megapixel Fixed Lens Camera is designed for indoor use, featuring a basic Wide Dynamic Range (WDR) of 74dB It has a progressive scan CMOS image sensor with a maximum resolution of 1MP (1280 x 800) The camera offers various functionalities including event trigger, response, and notification capabilities The camera utilizes an H264 video compression and allows for multi-streaming, ensuring efficient video quality.

It includes advanced features like image enhancement, digital noise reduction, and customizable privacy masking, making it suitable for diverse surveillance applications.

Features and Benefits:

    •1 Megapixel resolution (1280 x 800).

    •Basic WDR (74dB) for improved image quality.

    •Event trigger and notification capabilities.

    •Supports H.264 and MJPEG video compression.

    •Multiple configurations with simultaneous dual streams.

    •Image enhancement with automatic gain control and other settings.

    •4 configurable privacy mask regions.

    •Two-way audio with built-in microphone.

Specifications:

 Product Type Cube
 Application Environment Indoor
 Image Sensor Progressive Scan CMOS
 Sensor Size 1/4 "
 Effective Pixels 1280(H) X 800(V) (1.02 MP)
 Minimum Illumination Color: 0.1 lux at F1.8 (30 IRE, 2400 K)
 Lens Focal Length Fixed focal, f4.2mm
 Maximum Frame Rate vs. Resolution 30 fps at 1280 x 720, 30 fps at 800 x 600, 30 fps at 640 x 480, 15 fps at 320 x 240
 Power Source PoE Class 2 (IEEE802.3af)
 Power Consumption 3.15 W (PoE)
 Dimensions (W x H x D): 96mm x 96mm x 45.07mm (3.8" x 3.8" x 1.8")
 Starting Temperature -10°C ~ 45°C (14°F ~ 113°F)
 Operating Temperature -10°C ~ 45°C (14°F ~ 113°F)
 Operating Humidity 10% - 85% RH
 Security IP address filtering, HTTPS encryption, Password protected user level
 Weight 205g (0.45lb)
