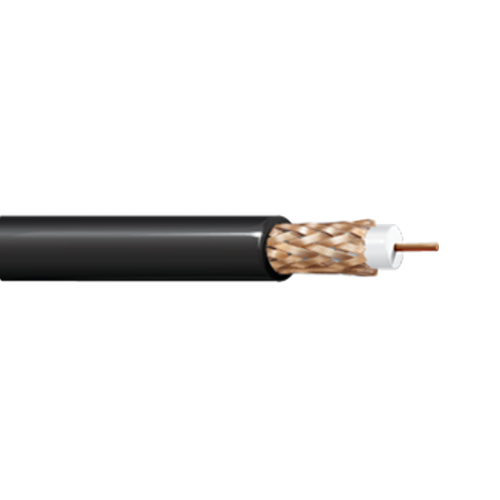

Belden 533945 18 AWG 1 Conductor Solid RG-6 75 Ohm Surveillance CCTV Cable
Belden 533945 18 AWG 1 Conductor Solid RG-6 75 Ohm Surveillance CCTV Cable
SKU: SKU: NES533945 Download PDF
Select a gauge:
- Belden 533945 18 AWG 1 Conductor Solid RG-6 75 Ohm Surveillance CCTV Cable
- Belden 533945 18 AWG 1 Conductor Solid RG-6 75 Ohm Surveillance CCTV Cable
Length:
FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Belden 533945 18 AWG 1 Conductor Solid RG-6 75 Ohm Surveillance CCTV Cable
Description:
Surveillance, CCTV, RG-6, 18 AWG solid bare copper, foam PE core, 92% bare copper braid, PVC jacket, CMG.
Insulation:
• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.180 in (4.57 mm)
Outer Shield:
• Outer Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 92%
Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.266 in (6.76 mm)
• Overall Cable Diameter (Nominal): 0.266 in (6.76 mm)
Applications:
• Surveillance, CCTV Camera
Specifications:
• Size (AWG): 18
• Conductor Count: 1
• Stranding: Solid
• Nom. Diameter: 0.040 in
• Impedance: 75 Ohm
• RG Type: 6
• Conductor Material: BC - Bare Copper
• Part Number: 533945
• Size (AWG): 18
• Conductor Count: 1
• Stranding: Solid
• Nom. Diameter: 0.040 in
• Impedance: 75 Ohm
• RG Type: 6
• Conductor Material: BC - Bare Copper
• Part Number: 533945
