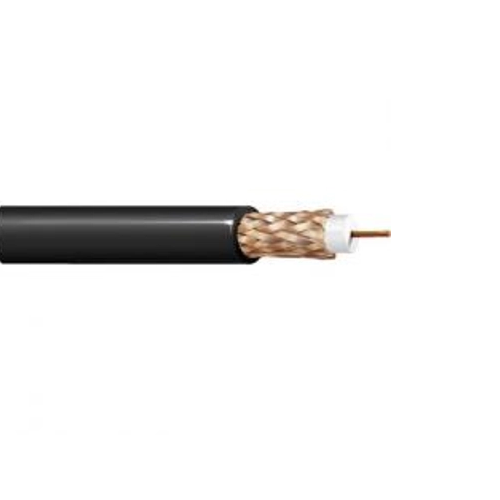

Belden 513945 14 AWG 1 Conductor Solid Bare Copper 600V Surveillance CCTV Coax Cable

Description:-

Surveillance and CCTV Cable, RG11, Rated-CM, 14 AWG solid bare copper, foam polyolefin core, 95% bare copper braid, PVC jacket.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.280 in (7.11 mm)
• Gas Injected

Outer Shield:-

• Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 95%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.405 in (10.3 mm)

Standards:-

• UL Voltage Rating: 600 V
• Nom. Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -30°C To +75°C

Applications:-

• Surveillance, CCTV Camera

Specifications:-

• Size (AWG): 14
• No. of Conductor: 1
• Stranding: Solid
• RG Type: 11
• Nom. Diameter: 0.0645 in
• Conductor Material: BC - Bare Copper
• Part Number: 513945
