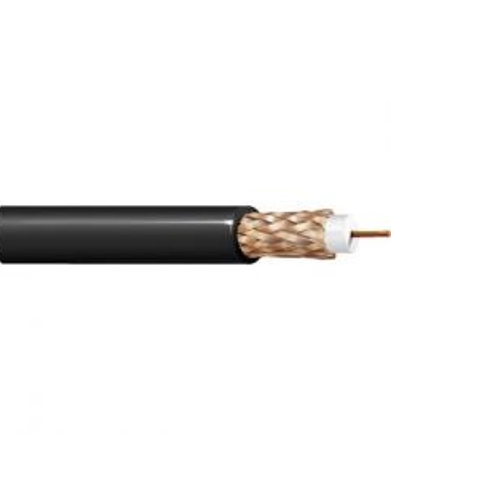

Belden 543945 20 AWG 1 Conductor Solid Bare Copper 300V Surveillance CCTV Coax Cable

Description:-

Surveillance and CCTV Cable, RG59, Rated-CMG, 20 AWG solid bare copper, foam polyolefin core, 90% bare copper braid, PVC jacket.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.145 in (3.68 mm)
• Gas Injected

Outer Shield:-

• Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 90%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.232 in (5.89 mm)
• Overall Cable Diameter (Nominal): 0.232 in (5.89 mm)

Standards:-

• UL Voltage Rating: 300 V
• Nom. Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -30°C To +75°C

Applications:-

• Surveillance, CCTV Camera

Specifications:-

• Size (AWG): 20
• No. of Conductor: 1
• Stranding: Solid
• Nom. Diameter: 0.032 in
• RG Type: 59
• Conductor Material: BC - Bare Copper
• Part Number: 543945
