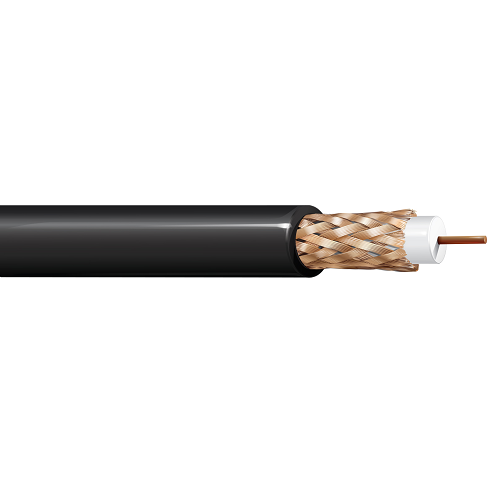

Belden 551945 22 AWG 1 Conductor 7x30 Stranding Bare Copper 300V Surveillance and CCTV Cable

Belden 551945 22 AWG 1 Conductor 7x30 Stranding Bare Copper 300V Surveillance and CCTV Cable

SKU: NES551945   Download PDF

Select a gauge:
  • Belden 551945 22 AWG 1 Conductor 7x30 Stranding Bare Copper 300V Surveillance and CCTV Cable
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $0.35 /FT   Web pricing policy
BEFORE   $0.00 Now $0.35 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Belden 551945 22 AWG 1 Conductor 7x30 Stranding Bare Copper 300V Surveillance and CCTV Cable

Description:

Surveillance and CCTV Cable, RG59, Rated-CM, 22 AWG stranded bare copper, foam polyolefin core, 93% bare copper braid, PVC jacket.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nominal Diameter: 0.14 in
• Gas Injected

Outer Shield:

• Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 93%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.232 in

Standards:

• Voltage Rating: 300 V RMS
• Operating Temperature: -40°C To +75°C
• Nom. Characteristic Impedance: 75 Ohm

Applications:

• Surveillance, CCTV Camera

Specifications:

• Size (AWG): 22
• No. of Conductor: 1
• Stranding: 7x30
• RG Type: 59
• Nom. Diameter: 0.03 in
• Conductor Material: BC - Bare Copper
• Part Number: 551945
