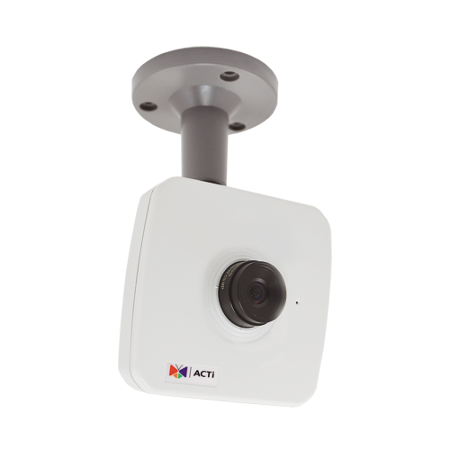

E14 10 Megapixel Fixed Lens, f3.6mm/F1.8 Camera

E14 10 Megapixel Fixed Lens, f3.6mm/F1.8 Camera

SKU: E14 Download PDF

Now $352.00
BEFORE   Now $352.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

The E14 camera features a 10 Megapixel resolution and is equipped with a fixed lens, f36mm/F18, suitable for indoor environments It offers basic WDR (70dB) and wide-angle capabilities, ensuring excellent image quality The camera operates on a progressive scan CMOS image sensor with effective pixels of 3856(H) X 2764(V) and supports various resolutions and frame rates It provides significant versatility with features such as event triggering, response, and notification, making it ideal for various surveillance applications.

Features and Benefits:

    •10 Megapixel maximum resolution for detailed images.

    •Wide-angle lens with a horizontal viewing angle of 99°.

    •Basic Wide Dynamic Range (70 dB) for improved image processing.

    •Support for multiple streaming options and bit rate configurations.

    •Robust event triggers and responses for effective monitoring.

    •Two-way audio support with a built-in microphone.

    •Integrated with various network protocols for versatile connectivity.

    •Compliant with ONVIF and GB28181 for seamless integration.

    •Supports edge recording and integration with NVR systems.

    •Compact design with dimensions of 96mm x 96mm x 45mm.

Specifications:

 Maximum Resolution 10MP
 Sensor Size 1/2.3 ''
 Effective Pixels 3856(H) X 2764(V) (10.66 MP)
 Minimum Illumination Color: 0.1 lux at F1.8 (30 IRE, 2400 K)
 Electronic Shutter 1/5-1/2000 second (manual mode); 1/5-1/10000 second (auto mode)
 Horizontal Resolution 1450 TVL
 S/N Ratio 75 dB
 Focal Length Fixed focal, f3.6mm
 Aperture F1.8
 Iris Fixed iris
 Focus Manual focus
 Lens Mount CS Mount (interchangeable lens)
 Video Compression H.264 (Baseline/ Main/ High profile), MJPEG
 Power Source PoE Class 2 (IEEE802.3af)
 Power Consumption 3.84 W (PoE)
 Weight 237g (0.522lb)
 Operating Temperature -10°C ~ 45°C (14°F ~ 113°F)
 Operating Humidity 10% - 85% RH
 Dimensional Specification (W x H x D): 96mm x 96mm x 45mm (3.8" x 3.8" x 1.8")
