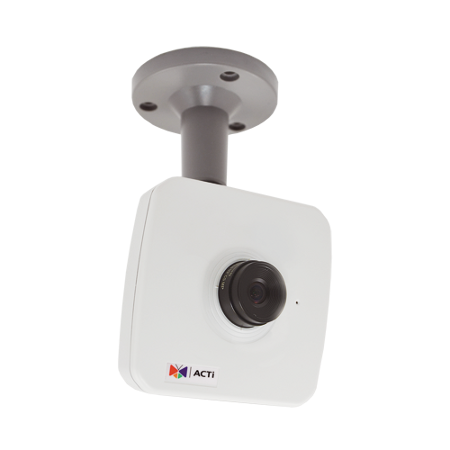

E11A 1 Megapixel Fixed Lens Camera

E11A 1 Megapixel Fixed Lens Camera

SKU: SKU: E11A   Download PDF

Qty:
Regular price Now $169.00   Web pricing policy
Regular price BEFORE   Sale price Now $169.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information
Resources

Description:

The E11A is a 1 Megapixel fixed lens camera featuring a f42mm/F18 lens designed for indoor use This cube camera incorporates basic Wide Dynamic Range (WDR) technology with a dynamic range of 74dB, allowing it to handle various lighting environments effectively Its progressive scan CMOS image sensor with an effective pixel resolution of 1280(H) x 800(V) offers clear and detailed images The camera supports various video compression formats such as H.

264 and MJPEG and is capable of multi-streaming with simultaneous dual streams With advanced analytics features and a built-in microphone for two-way audio communication, it can also alert users through event triggers and notifications The product is ideal for securing indoor environments and monitoring activities efficiently.

Features and Benefits:

    •1 Megapixel resolution with 1280 x 800 effective pixels..

    •Basic WDR (74 dB) for improved performance in varying light conditions..

    •Multi-streaming capabilities for flexible video distribution..

    •Advanced server-based analytics including object and people counting..

    •Two-way audio with built-in microphone..

    •Manual focus and fixed aperture for precise control over image quality..

    •Indoor surveillance and monitoring..

    •Security in retail and office environments..

    •Traffic monitoring and analysis..

Specifications:

 Maximum Resolution 1MP
 Image Sensor Progressive Scan CMOS
 Sensor Size 1/4 "
 Day/Night No
 Minimum Illumination Color: 0.1 lux at F1.8 (30 IRE, 2400 K)
 Electronic Shutter 1/5-1/2000 second (manual mode); 1/5-1/10000 second (auto mode)
 Horizontal Resolution 700 TVL
 S/N Ratio 75 dB
 Focal Length Fixed focal, f4.2mm
 Iris Fixed iris
 Network Protocol & Service IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
 Weight 242g
 Power Source PoE Class 2 (IEEE802.3af)
 Power Consumption 3.456 W (PoE)
 Dimensions (W x H x D): 96mm x 96mm x 45mm (3.8" x 3.8" x 1.8")
 Operating Temperature -10°C ~ 45°C (14°F ~ 113°F)
 Operating Humidity 10% - 85% RH
