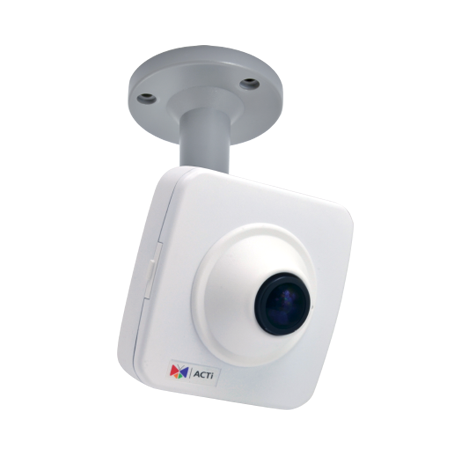

E16 Fisheye Lens, f1.37mm/F2.0

E16 Fisheye Lens, f1.37mm/F2.0

SKU: E16 Download PDF

Now $412.00
BEFORE   Now $412.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

The E16 offers a 10 Megapixel fisheye lens with a fixed focal length of f137mm and aperture of F20 It features a basic wide dynamic range of 70dB and provides a 180°/360° fisheye view This fisheye cube is designed for indoor applications and supports various compression formats, including H264 and MJPEG The camera is equipped for event triggering, response activation, and notification functionalities, enhancing its utility in monitoring scenarios.

With maximum resolutions of various formats and a consistent frame rate, the E16 ensures high-quality image output for extensive surveillance purposes.

Features and Benefits:

    •10 Megapixel resolution.

    •Basic wide dynamic range of 70dB.

    •180°/360° fisheye view.

    •Event trigger and notification features.

    •Supports multi-streaming capabilities.

    •Built-in 2-way audio with microphone.

    •Advanced analytics for object counting and detection.

    •Ideal for indoor surveillance and monitoring.

    •Suitable for use in environments requiring wide area coverage.

    •Excellent for security installations utilizing event-based monitoring.

Specifications:

 Maximum Resolution 10MP
 Image Sensor Progressive Scan CMOS
 Sensor Size 1/2.3 "
 Effective Pixels 3856(H) X 2764(V) (10.66 MP)
 Minimum Illumination Color: 0.1 lux at F2.0 (30 IRE, 2400 K)
 Horizontal Resolution (TV Lines) 1450 TVL
 Focal Length Fixed focal, f1.37mm
 Aperture F2.0
 Horizontal Viewing Angle 187.7° (overview area), 114.5° (high detail area)
 Vertical Viewing Angle 187.69°
 Compression H.264 (Baseline/Main/High profile), MJPEG
 Maximum Power Consumption 3.84 W (PoE)
 Ethernet Port 1 x RJ-45 connector
 Dimensions (W x H x D): 96mm x 96mm x 45mm (3.8" x 3.8" x 1.8")
 Starting Temperature -10°C ~ 50°C (14°F ~ 122°F)
 Operating Temperature -10°C ~ 50°C (14°F ~ 122°F)
 Operating Humidity 10% - 85% RH
