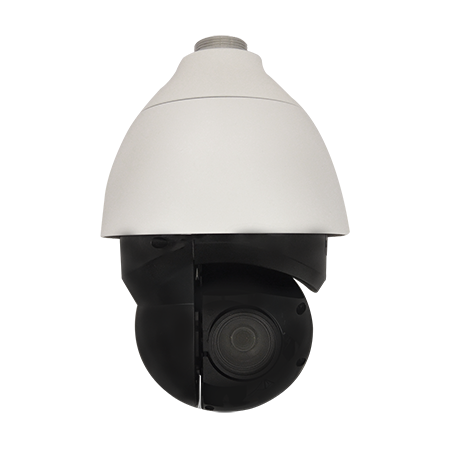

A956 ALPR 2 Megapixel Day & Night with Extreme Low Light Sensitivity and Adaptive IR LED

A956 ALPR 2 Megapixel Day & Night with Extreme Low Light Sensitivity and Adaptive IR LED

SKU: A956 Download PDF

Variant:
  • A956 ALPR 2 Megapixel Day & Night with Extreme Low Light Sensitivity and Adaptive IR LED
Now $4,909.00
BEFORE   Now $4,909.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

This product features a 2 Megapixel resolution with excellent sensitivity for both day and night It is equipped with Adaptive IR LED for enhanced low-light performance The design includes extreme WDR (150dB) and endless pan and tilt capabilities, making it suitable for various applications, including face, people, and car detection, specifically geared for outdoor environments Built-in analytics allow for pre-defined event triggers, responses, and notifications.

Features and Benefits:

    •2 Megapixel resolution.

    •Extreme low light sensitivity.

    •Endless pan and tilt capabilities.

    •Built-in analytics for enhanced detection.

    •Weatherproof (IP66) and vandal-proof (IK10) design.

    •Face Detection.

    •People Detection.

    •Car Detection.

    •Automatic License Plate Recognition (ALPR).

Specifications:

 Product Type Speed Dome
 Image Sensor Progressive Scan CMOS
 Sensor Size 1/2.8 "
 Effective Pixels 1945(H) X 1097(V) (2.13 MP)
 Day / Night Yes
 Low Light Sensitivity Extreme
 Minimum Illumination Color: 0.002 lux; B/W: 0.001 lux; B/W: 0 lux (IR LED on)
 Mechanical IR Cut Filter Yes
 IR Sensitivity Range 700-1100nm
 IR LED Adaptive IR LED x 8 (850 nm)
 IR Working Distance 250m
 Electronic Shutter 1-1/10000 second (manual mode); 1-1/10000 second (auto mode)
 S/N Ratio 75 dB
 Lens {'Focal Length': 'Zoom, f4.3-170mm', 'Aperture': 'F1.6', 'Zoom Ratio': '40x optical zoom, 10x digital zoom', 'Iris': 'P-Iris', 'Focus': 'Auto focus', 'Horizontal Viewing Angle': '66.1° - 1.8°', 'Vertical Viewing Angle': '39.8° - 1.1°'}
 PTZ {'Manual Panning Speed': '0.1° - 90°/second', 'Manual Tilting Speed': '0.1° - 55°/second', 'Preset Panning Speed': '300°/second', 'Preset Tilting Speed': '300°/second', 'Panning Range': '360° endless', 'Tilting Range': '-20°~100°'}
 Video {'Compression': 'H.265 Adaptive Stream, H.264, MJPEG', 'Maximum Frame Rate': '30 fps at 1920 x 1080', 'Multi-Streaming': 'Simultaneous quad streams'}
 Audio 2-way, Line-in, Line-out
 Network Protocol IPv4, IPv6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DDNS, NTP, RTP, RTSP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, QoS, SNMP, IEEE 802.1X
 Power Source AC 24V, High PoE 60W
 Dimensions (Ø x H): 207mm x 300mm (8.15" x 11.81")
 Color White
 Environment Operating Temperature: -40°C ~55°C (-40°F ~ 131°F) with heater on
