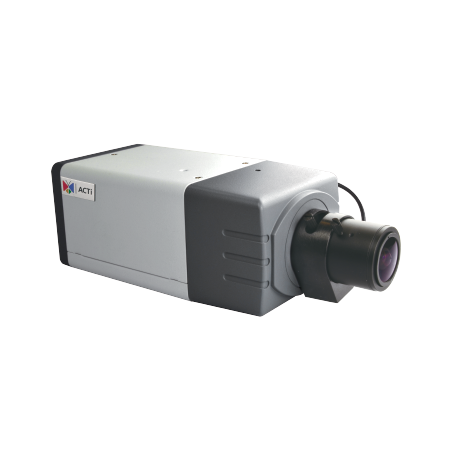

E23 2 Megapixel Day & Night Camera

E23 2 Megapixel Day & Night Camera

SKU: E23 Download PDF

Variant:
  • E23 2 Megapixel Day & Night Camera
Now $489.00
BEFORE   Now $489.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

The E23 is a 2 Megapixel Day & Night camera designed with superior low light sensitivity and a vari-focal lens with a range of f28-12mm/F14 It features Basic WDR (75dB) and provides a wide-angle view, making it suitable for various indoor and outdoor applications.

Features and Benefits:

    •Superior low light sensitivity with minimum illumination of Color: 0.003 lux at F1.4; B/W: 0.002 lux at F1.4.

    •Day/Night functionality with ISP based color to B/W switch.

    •Mechanical IR cut filter for enhanced image quality.

    •Wide Dynamic Range (Basic WDR) for improved image balance.

    •Configurable privacy mask with 4 regions.

    •Multi-streaming capability with simultaneous dual streams.

    •Auto firmware upgrade support.

    •Comprehensive security features including IP address filtering and HTTPS encryption.

    •Ideal for both indoor and outdoor setups, suitable for security surveillance applications.

Specifications:

 Maximum Resolution 2MP
 Application Environment Indoor/Outdoor
 Image Sensor Progressive Scan CMOS
 Sensor Size 1/2.8 inches
 Effective Pixels 1984(H) X 1225(V) (2.43 MP)
 Day / Night Yes
 Horizontal Resolution 1100 TVL
 Video Compression H.264 (Baseline/ Main/ High profile), MJPEG
 Maximum Frame Rate 30 fps at 1920 x 1080
 Bit Rate 28Kbps - 6Mbps (per stream)
 Power Source PoE Class 2 (IEEE802.3af)
 Power Consumption 3.645 W (PoE)
 Dimensions (W x H x D): 67.05mm x 65.02mm x 169.89mm (2.6" x 2.6" x 6.7")
 Starting Temperature -10°C ~ 50°C (14°F ~ 122°F)
 Operating Temperature -10°C ~ 50°C (14°F ~ 122°F)
 Operating Humidity 10% - 85% RH
 Approvals CE, FCC, UL (for optional PoE injector)
