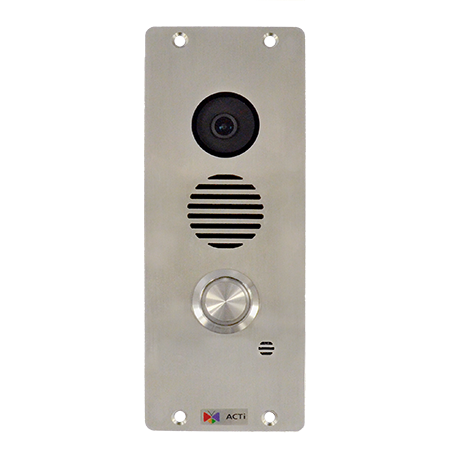

Q970 2 Megapixel Fixed Lens

Q970 2 Megapixel Fixed Lens

SKU: SKU: Q970   Download PDF

Qty:
Regular price Now $1,779.00   Web pricing policy
Regular price BEFORE   Sale price Now $1,779.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information
Resources

Description:

The camera offers a 2 Megapixel resolution with a fixed lens of f36mm/F185, providing a basic wide dynamic range of 75 dB It features event trigger responses and notification capabilities The image sensor is a progressive scan CMOS with a sensor size of 1/29 inches, delivering effective pixels of 1984(H) X 1105(V) corresponding to 219 MP The camera operates indoors, has low light sensitivity, and is capable of managing minimum illumination and video resolutions up to 1920 x 1080 at a frame rate of 30 fps.

With audio management including two-way communication and built-in microphone, this unit ensures comprehensive performance for various surveillance applications.

Features and Benefits:

    •2 Megapixel Maximum Resolution.

    •Basic WDR (75dB).

    •Wide Angle View.

    •Event Triggering and Notification.

    •Superior Low Light Sensitivity.

    •Privacy Mask Functionality.

    •Digital Noise Reduction.

    •Audio Compression for clear sound transmission.

    •Surveillance in indoor environments.

    •Event monitoring through triggered notifications.

    •Audio communication in security systems.

Specifications:

 Image Sensor: Progressive Scan CMOS
 Sensor Size: 1/2.9 inch
 Effective Pixels: 1984(H) X 1105(V) (2.19 MP)
 Horizontal Resolution (TV Lines): 1100 TVL
 Lens Focal Length: Fixed focal, f3.6mm
 Aperture: F1.85
 Bit Rate: 28Kbps - 6Mbps (per stream)
 Power Source: DC 12V, PoE Class 3 (IEEE802.3af)
 Power Consumption: 12.95 W (PoE)
 Weight: 728g (1.605lb)
 Dimensions: (W x H x D): 82mm x 212mm x 47.2mm (3.2" x 8.3" x 1.9")
 Environmental Casing: Weatherproof front plate only (IP66), Vandal proof metal casing (IK10)
 Starting Temperature: -40°C ~ 55°C (-40°F ~ 131°F)
 Operating Temperature: -40°C ~ 55°C (-40°F ~ 131°F)
 Approvals: CE, FCC, IP66 (front plate only), IK10 (metal casing)
