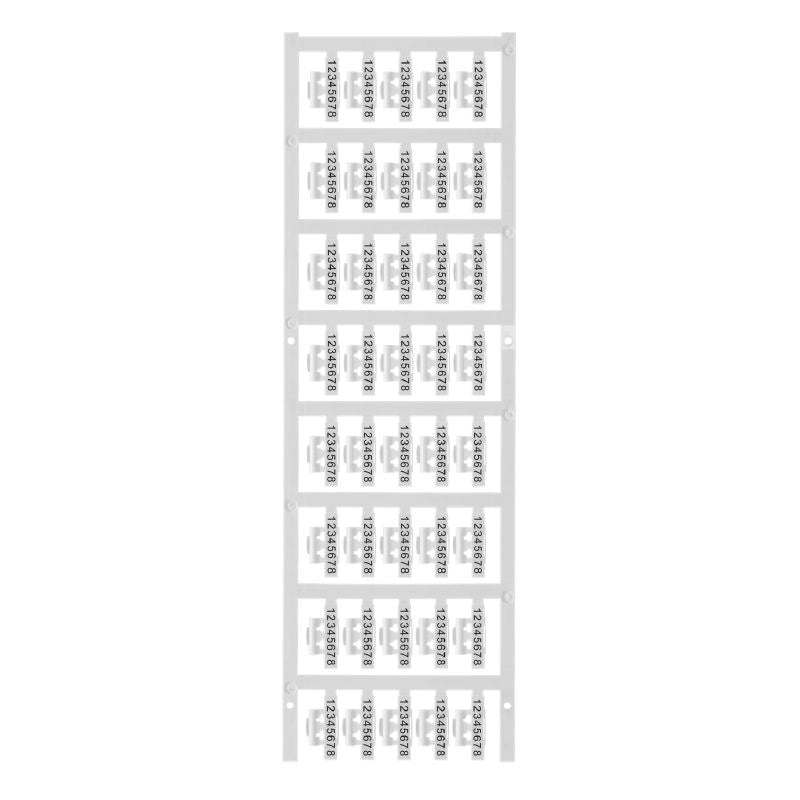

1062110000 - 21x9.3mm RoHS Compliant Cable Markers for 4-6mm Conductors (Pack of 24)

1062110000 - 21x9.3mm RoHS Compliant Cable Markers for 4-6mm Conductors (Pack of 24)

SKU: SKU: 1062110000 Download PDF

Variant:
  • 1062110000 - 21x9.3mm RoHS Compliant Cable Markers for 4-6mm Conductors (Pack of 24)
Regular price Now $11.42
Regular price BEFORE   $0.00 Sale price Now $11.42
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SFC 25/21 MC SDR markers, expertly crafted for conductors and cables with diameters ranging from 4 to 6 mm Measuring 21 x 93 mm, these markers are customized to meet specific customer needs Manufactured from polyamide 66, they adhere to RoHS standards, ensuring environmental safety With an impressive operating temperature range of -40°C to 100°C, each MultiCard comes complete with a unique combination of markers, conveniently packaged in sets of 24.

Perfect for those who require reliable marking solutions for their electrical projects.

Features and Benefits:

    •Compatible with PRINTJET CONNECT printer.

    •Printing requires M-Print PRO file.

    •Horizontal orientation for printing.

    •V-2 UL 94 flammability rating.

    •Specific color options available based on customer requirements.

Specifications:

 Depth 9.1 mm
 Height 21 mm
 Width 9.3 mm
 Number of markers per combination 1 MultiCard = Conductor and cable markers
 Conductor O.D. 4 - 6 mm
 Conductor cross-section, max. 10 mm²
 Conductor cross-section, min. 4 mm²
 Cross-section for connected wire 4 - 10 mm²
 ETIM 6.0 EC001530
 ECLASS 9.0 27-40-04-01
