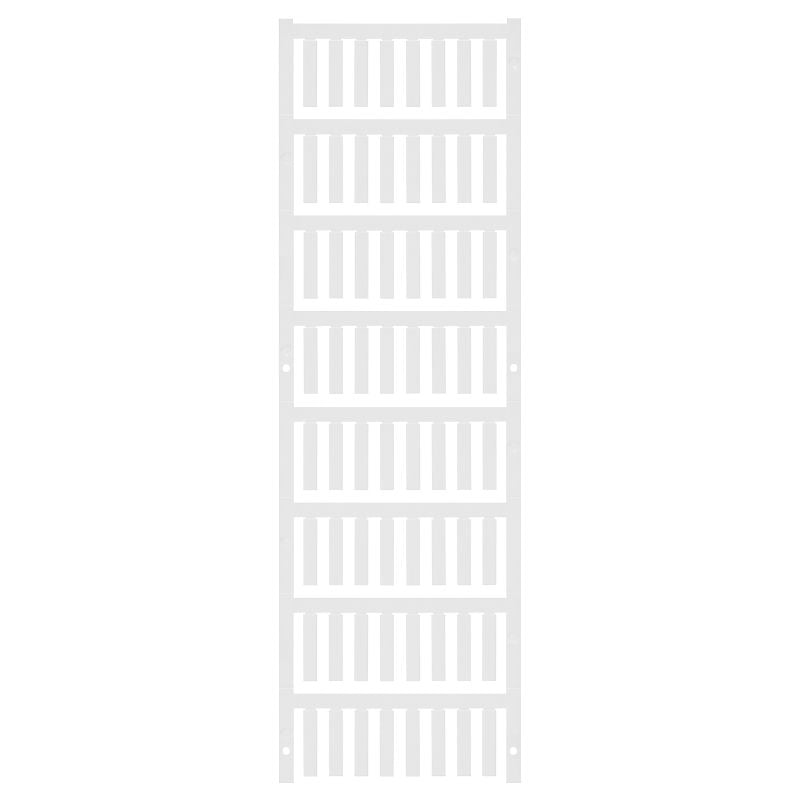

1918880000 - Slim 3-3.7mm Cable Marker, 21x4.6mm, 64 Pack (Pack of 64)

SKU: SKU: 1918880000 Download PDF

Select a Variant:

1918880000 - Slim 3-3.7mm Cable Marker, 21x4.6mm, 64 Pack (Pack of 64)

SET THE QTY:

Now $20.54 Web pricing policy

~~BEFORE $0.00~~ Now $20.54 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the SF 3/21 MC SDR V2 conductor and cable marker, meticulously crafted to fulfill customer specifications These slim markers measure between 3 to 37 mm in diameter, with overall dimensions of 21 x 46 mm, making them ideal for precise labeling This product adheres to RoHS standards and is sold in packs of 64, providing an ample supply for your needs.

Features and Benefits:

•Compliant with RoHS without exemption.

•Produced from polyamide 66.

•Black printing color.

•Operating temperature range from -40 to 100 °C.

•Includes a MultiCard supply form.

•Requires M-Print PRO file for printed characters.

Specifications:

Depth	4.8 mm
Height	21 mm
Width	4.6 mm
Conductor cross-section (max)	2.5 mm²
Conductor cross-section (min)	1.5 mm²
Conductor O.D. (max)	3.7 mm
Conductor O.D. (min)	3 mm
Cross-section for connected wire	1.5 - 2.5 mm²
UL 94 flammability rating	V-2
ETIM 6.0	EC001530
ETIM 9.0	EC001530
ECLASS 9.0	27-40-04-01
ECLASS 10.0	27-40-04-01
