1439540000 - RoHS Compliant SFX-M Cable Marker, 11mm x 60mm, Stainless Steel

1439540000 - RoHS Compliant SFX-M Cable Marker, 11mm x 60mm, Stainless Steel

SKU: SKU: 1439540000 Download PDF

Variant:
  • 1439540000 - RoHS Compliant SFX-M Cable Marker, 11mm x 60mm, Stainless Steel
Regular price Now $9.69
Regular price BEFORE   $0.00 Sale price Now $9.69
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

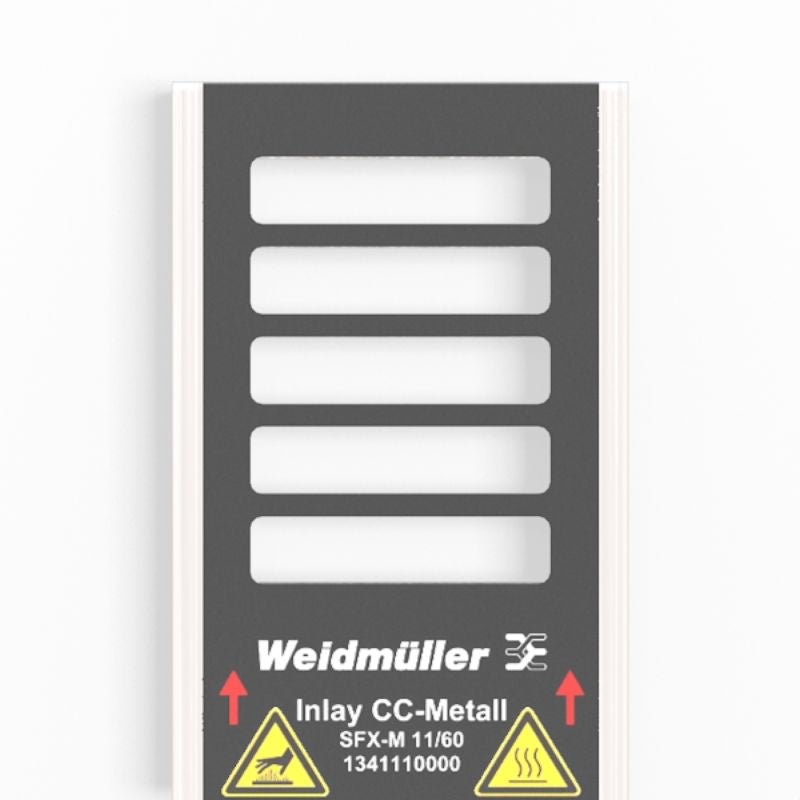

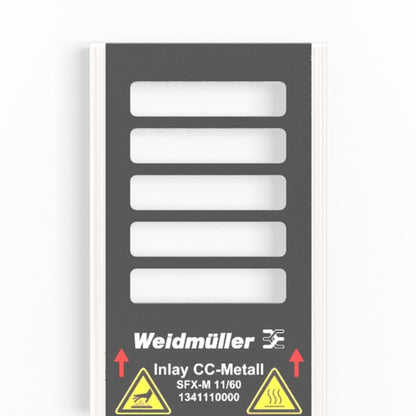

Introducing the SFX-M 11/60-5 ST SDR, an environmentally friendly product that fully adheres to RoHS standards It features durable conductor and cable markers crafted from micro-etched stainless steel 14301, displayed on a convenient MetalliCard that accommodates one marker This marker can be oriented both horizontally and vertically for versatile use Designed to withstand extreme temperatures, it operates effectively within a range of -55°C to 130°C, making it suitable for a variety of applications.

Features and Benefits:

    •Compliant with RoHS standards.

    •Requires M-Print PRO File for printed characters.

    •Suitable for use in process and energy industries.

    •Operating temperature reliability from -55°C to 130°C.

    •Conductor and cable marking.

Specifications:

 Depth 0.8 mm
 Height 60 mm
 Width 11 mm
 Operating temperature range -55...130 °C
 Number of markers per combination 1 MetalliCard = Conductor and cable markers
 Size of labelling field 11.2 x 45 mm
 Cable tie passage Flat
 Conductor cross-section, max 500 mm²
 Conductor cross-section, min 16 mm²
 Conductor O.D. 7 - 40 mm
 Conductor O.D., max 40 mm
 Conductor O.D., min 7 mm
 Cross-section for connected wire 16 - 500 mm²
 ETIM 6.0 EC001530
 ETIM 7.0 EC001530
 ETIM 8.0 EC001530
 ETIM 9.0 EC001530
 ETIM 10.0 EC001530
 ECLASS 9.0 27-40-04-01
 ECLASS 9.1 27-40-04-01
 ECLASS 10.0 27-40-04-01
 ECLASS 11.0 27-28-11-02
 ECLASS 12.0 27-28-11-02
 ECLASS 13.0 27-28-11-02
 ECLASS 14.0 27-28-11-02
 ECLASS 15.0 27-28-11-02
