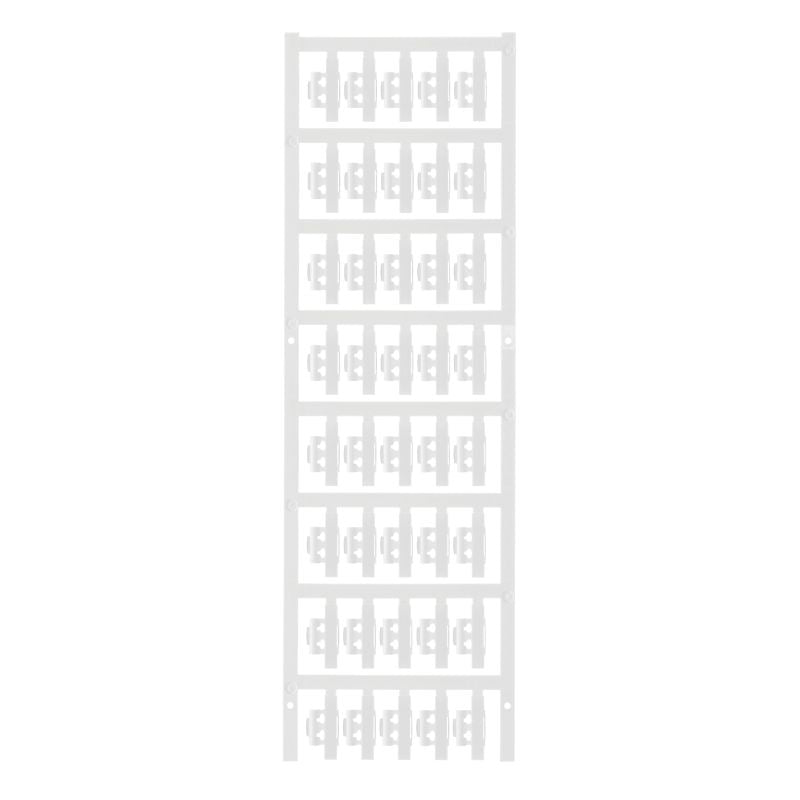

1779090000 - Slim Clip for 2-3.5mm Cables, 21x5.8mm, RoHS Compliant (Pack of 40)

1779090000 - Slim Clip for 2-3.5mm Cables, 21x5.8mm, RoHS Compliant (Pack of 40)

SKU: SKU: 1779090000 Download PDF

Variant:
  • 1779090000 - Slim Clip for 2-3.5mm Cables, 21x5.8mm, RoHS Compliant (Pack of 40)
Regular price Now $15.66
Regular price BEFORE   $0.00 Sale price Now $15.66
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SFC 1/21 MC SDR, a meticulously crafted slim fix clip tailored for conductor and cable markers sized between 2 mm and 35 mm Measuring 21 x 58 mm, this clip is produced to meet specific customer requirements and adheres to RoHS regulations for environmental safety Enhance your organization and efficiency with a product designed for reliability and compliance.

Features and Benefits:

    •Compliant with RoHS without exemption.

    •Operates effectively within a temperature range of -40 to 100 °C.

    •Printed characters require the M-Print PRO File for customization.

    •MultiCard supplies allow for effective printing and organization of markers.

    •Halogen-free construction enhances environmental compliance.

Specifications:

 Depth 7 mm
 Height 21 mm
 Width 5.8 mm
 Operating temperature range -40...100 °C
 Basic material Polyamide 66
 Number of markers per combination 1 MultiCard = Conductor and cable markers
 Conductor cross-section, max 2.5 mm²
 Conductor cross-section, min 0.75 mm²
 Conductor O.D. 2 - 3.5 mm
 ETIM Classification EC001530
 ECLASS 9.0 27-40-04-01
