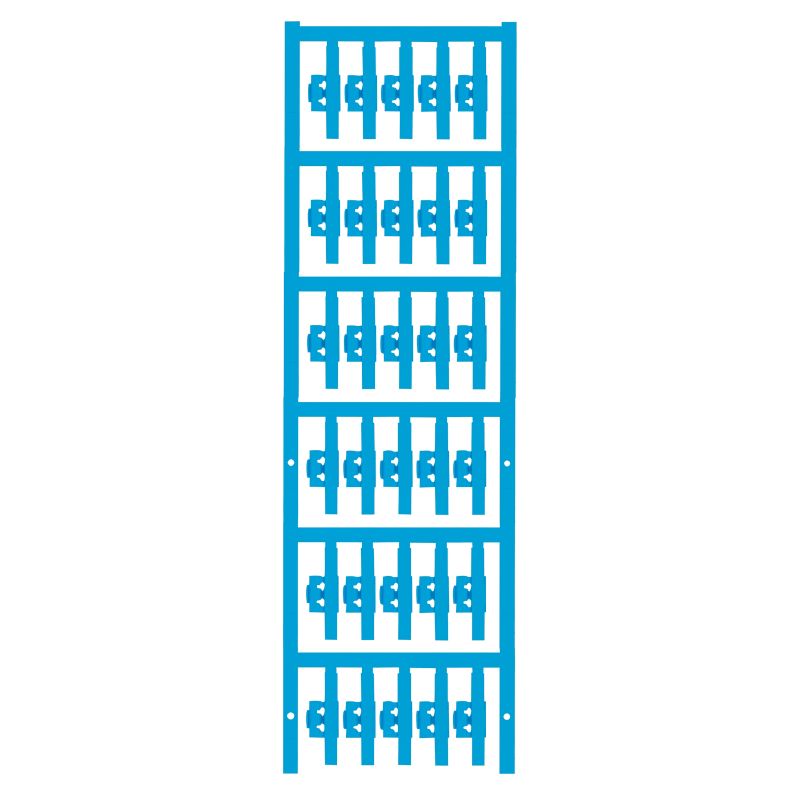

1805750000 - 30 x 5.8 mm Polyamide Marking Solution for 2-3.5 mm Cables (Pack of 30)

1805750000 - 30 x 5.8 mm Polyamide Marking Solution for 2-3.5 mm Cables (Pack of 30)

SKU: SKU: 1805750000 Download PDF

Variant:
  • 1805750000 - 30 x 5.8 mm Polyamide Marking Solution for 2-3.5 mm Cables (Pack of 30)
Regular price Now $11.98
Regular price BEFORE   $0.00 Sale price Now $11.98
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SFC 1/30 MC SDR, a highly efficient solution for marking conductors and cables measuring between 2 to 35 mm in diameter With tailored dimensions of 30 x 58 mm, this compact marker ensures a precise fit for your needs It meets ROHS compliance standards and contains no SVHC substances above 01 wt%, guaranteeing safety and reliability Crafted from durable polyamide 66, this product delivers both excellent visual appeal and robust functionality for diverse applications.

Features and Benefits:

    •Operating temperature range from -40 to 100 °C.

    •Printing is customizable based on customer specifications.

    •Uses MC Laser printing method.

    •Horizontal orientation for printed characters.

    •Available in multi-card supply form.

Specifications:

 Depth 7 mm
 Height 30 mm
 Width 5.8 mm
 Net weight 0.4 g
 Conductor cross-section, max 2.5 mm²
 Conductor cross-section, min 0.75 mm²
 Conductor O.D. range 2 - 3.5 mm
 UL 94 flammability rating V-2
 Basic material Polyamide 66
 Colour of printing black
 Number of markers per combination 1 MultiCard = Conductor and cable markers
 Size of labelling field 30 x 4.1 mm
