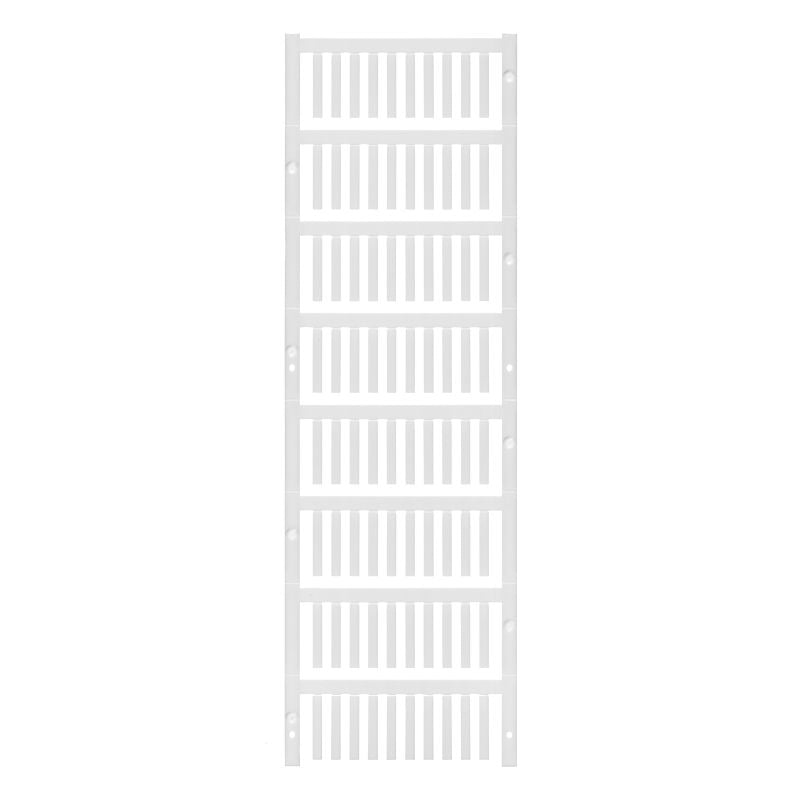

1318810000 - SlimFix R 1.7-2.1mm Cable Markers, RoHS Compliant (Pack of 80)

1318810000 - SlimFix R 1.7-2.1mm Cable Markers, RoHS Compliant (Pack of 80)

SKU: SKU: 1318810000 Download PDF

Variant:
  • 1318810000 - SlimFix R 1.7-2.1mm Cable Markers, RoHS Compliant (Pack of 80)
Regular price Now $23.70
Regular price BEFORE   $0.00 Sale price Now $23.70
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SlimFix R, an ideal solution for marking conductors and cables This product is designed to fit conductors with an outside diameter of 17 mm to 21 mm and measures 21 x 58 mm, allowing for customization according to your needs Made from high-quality Polyamide 66, these markers comply with RoHS standards and are engineered to perform well in harsh environments, withstanding temperatures from -40 °C to 100 °C.

Each packaging contains 80 markers, ensuring you have enough for your projects.

Features and Benefits:

    •Customizable color based on customer requirements.

    •Requires M-Print PRO File for printed characters.

    •Contains one MultiCard that includes conductor and cable markers.

    •Compatible with PRINTJET CONNECT printer.

    •No halogen content.

Specifications:

 Height 21 mm
 Width 5.8 mm
 Operating temperature range -40...100 °C
 Basic material Polyamide 66
 Conductor cross-section, max 0.75 mm²
 Conductor cross-section, min 0.5 mm²
 Conductor O.D. 1.7 - 2.1 mm
 UL 94 flammability rating V-2
 Number per sheet 80
 ETIM 6.0 EC001530
 ETIM 7.0 EC001530
 ETIM 8.0 EC001530
 ETIM 9.0 EC001530
 ETIM 10.0 EC001530
 ECLASS 9.0 27-40-04-01
 ECLASS 9.1 27-40-04-01
 ECLASS 10.0 27-40-04-01
 ECLASS 11.0 27-28-11-02
 ECLASS 12.0 27-28-11-02
 ECLASS 13.0 27-28-11-02
 ECLASS 14.0 27-28-11-02
 ECLASS 15.0 27-28-11-02
