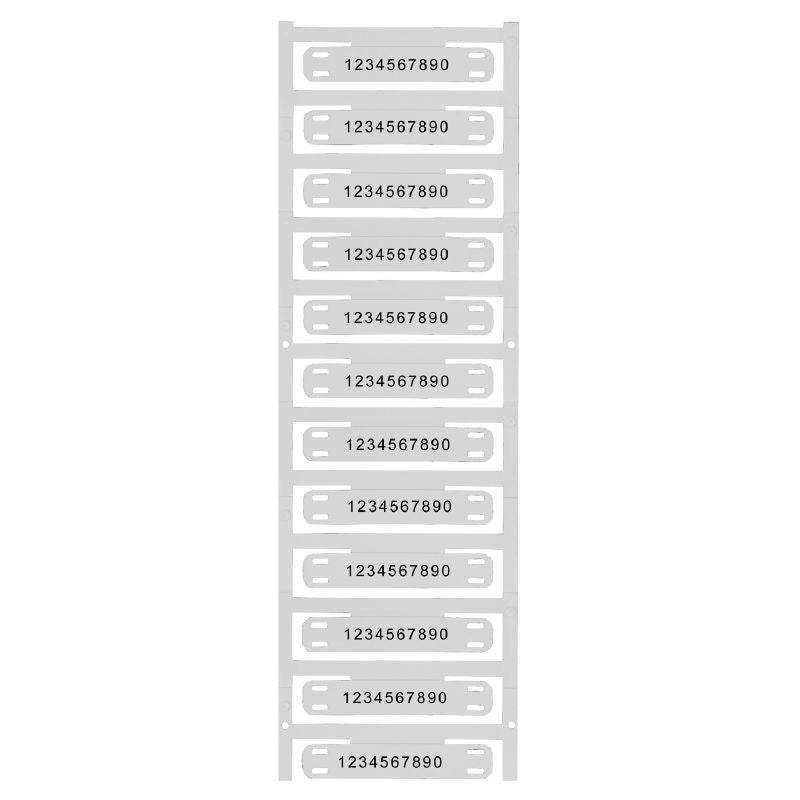

1860140000 - Customizable 60 x 11 mm Conductor & Cable Markers (Pack of 12)

SKU: SKU: 1860140000 Download PDF

Select a Variant:

1860140000 - Customizable 60 x 11 mm Conductor & Cable Markers (Pack of 12)

SET THE QTY:

Now $7.12 Web pricing policy

~~BEFORE $0.00~~ Now $7.12 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the SlimFix X – a versatile solution for conductor and cable labeling that can be customized according to your unique specifications With sizes varying from 7 mm to 40 mm and a standard measurement of 60 x 11 mm, these markers are designed to meet various needs Fully compliant with RoHS regulations without exemptions, the SlimFix X product boasts a minimal carbon footprint of just 0018 kg CO2 equivalent from cradle to gate, making it an eco-friendly choice for your labeling solutions.

Features and Benefits:

•Operating temperature range is between -40 to 100 °C.

•Made from Polyamide 66.

•Horizontal print orientation.

•Printing method is MC Laser.

•Available printing characters require an M-Print PRO File.

•UL 94 flammability rating is V-2.

•MultiCard form of supply, providing 1 MultiCard for conductor and cable markers.

Specifications:

Depth	0.8 mm
Height	60 mm
Width	11 mm
Net weight	1.52 g
Conductor cross-section, max	500 mm²
Conductor cross-section, min	16 mm²
Conductor O.D.	7 - 40 mm
Cross-section for connected wire	16 - 500 mm²
Color of printing	black
Number of markers per combination	1 MultiCard
Operating temperature range, min	-40 °C
Operating temperature range, max	100 °C
ETIM 6.0	EC001530
ECLASS 9.0	27-40-04-01
