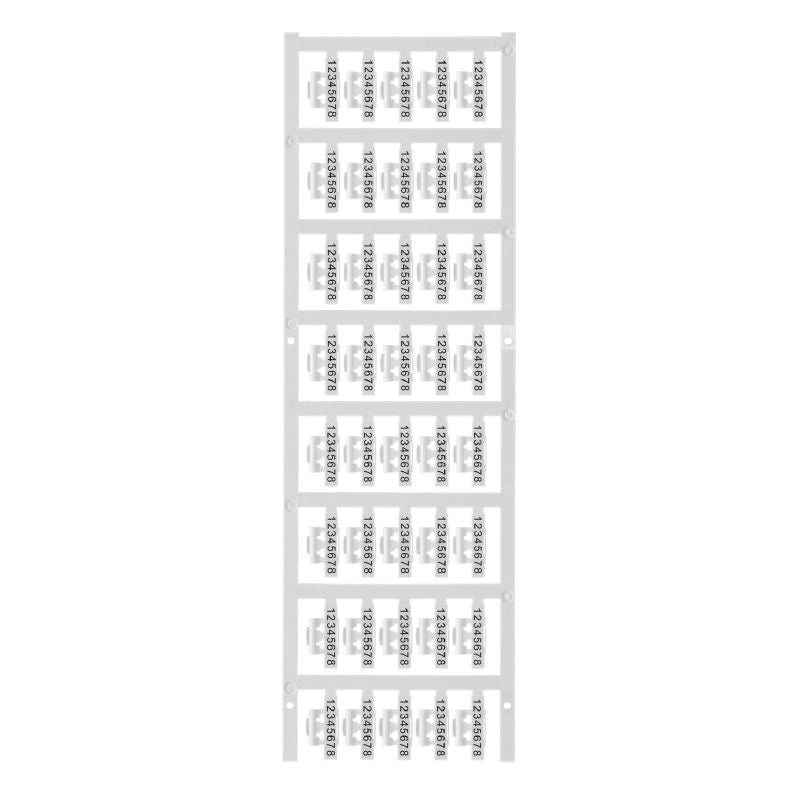

1813230000 - SlimFix Cable Markers, 21x5.8mm, RoHS Compliant (Pack of 40)

1813230000 - SlimFix Cable Markers, 21x5.8mm, RoHS Compliant (Pack of 40)

SKU: SKU: 1813230000 Download PDF

Variant:
  • 1813230000 - SlimFix Cable Markers, 21x5.8mm, RoHS Compliant (Pack of 40)
Regular price Now $15.66
Regular price BEFORE   $0.00 Sale price Now $15.66
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SFC 0/21 MC SDR version from AIM Electronics, a versatile solution complete with a SlimFix Clip and specifically designed conductor and cable markers suitable for diameters ranging from 15 to 25 mm Measuring 21 x 58 mm, these markers can be tailored to fit your unique requirements This product adheres to RoHS regulations and is free from any SVHC substances, ensuring safety and compliance.

Available in colors specified by customers, the labels can be printed using PRINTJET CONNECT For printing purposes, the M-Print PRO software is required Notably, the materials used are halogen-free The markers are packaged in multi-card formats and are recommended for conductor sizes between 05 and 1 mm², making them a reliable choice for your electronic projects.

Features and Benefits:

    •Customizable colors based on client requirements.

    •Requires M-Print PRO for printing specifications.

    •Multi-card form for effective branding.

    •No halogens in construction.

Specifications:

 Depth 7 mm
 Height 21 mm
 Width 5.8 mm
 Operating temperature range -40...100 °C
 Basic material Polyamide 66
 Conductor O.D. (min) 1.5 mm
 Conductor O.D. (max) 2.5 mm
 Conductor cross-section (min) 0.5 mm²
 Conductor cross-section (max) 1.0 mm²
 UL 94 flammability rating V-2
 Printing method MC Laser
 Size of labelling field 21 x 4.1 mm
 Colour of printing black
 Product Carbon Footprint 0.006 kg CO2 eq.
