1888850000 - Custom 21x3.2mm SlimFix Conductor Markers, RoHS Compliant (Pack of 80)

SKU: SKU: 1888850000 Download PDF

Variant:

1888850000 - Custom 21x3.2mm SlimFix Conductor Markers, RoHS Compliant (Pack of 80)

Now $21.47

~~BEFORE $0.00~~ Now $21.47

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

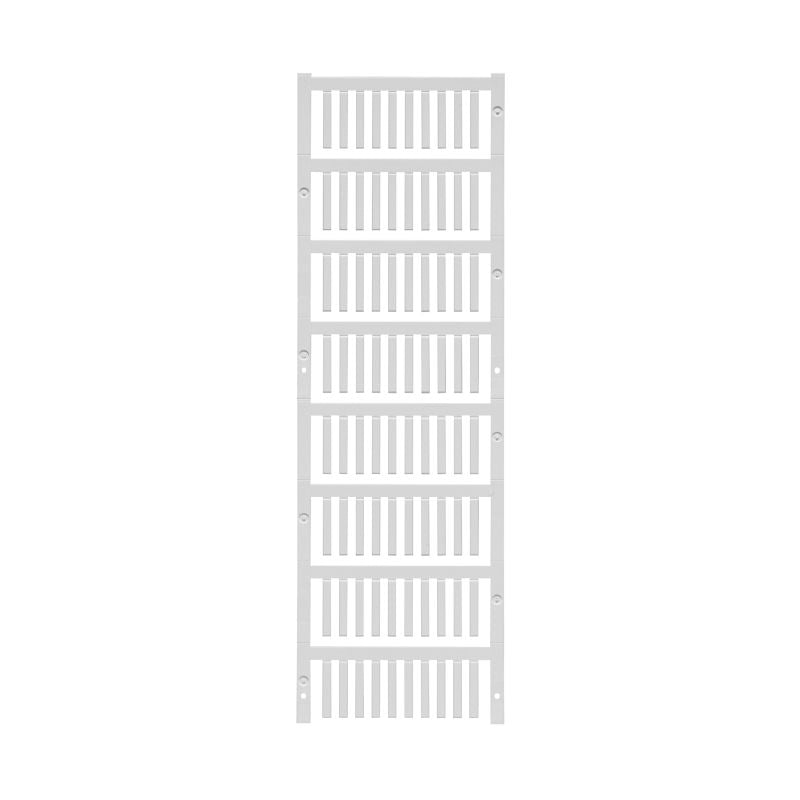

Presenting the SlimFix conductor and cable markers, tailored to meet your needs with precise dimensions of 21 x 32 mm These markers are fully RoHS compliant, adhering to all environmental regulations Capable of operating in extreme temperatures ranging from -50 to 120 °C, they offer versatility for various applications Each set is conveniently packaged in MultiCards and is designed for horizontal printing, utilizing advanced MC Laser technology.

For customization, an M-Print PRO file is required to create your desired print characters.

Features and Benefits:

•Custom color based on customer specifications.

•Compatible with PRINTJET CONNECT.

•No halogen content.

•Single MultiCard for conductor and cable markers.

•Requires M-Print PRO file for printed characters.

Specifications:

Depth	3.2 mm
Height	21 mm
Width	3.2 mm
Net weight	0.225 g
Operating temperature range	-50 to 120 °C
Conductor cross-section, max	0.5 mm²
Conductor cross-section, min	0.25 mm²
Conductor O.D.	1.2 - 1.6 mm
Printed characters	Requires M-Print PRO File
UL 94 flammability rating	V-0
Size of labelling field	21 x 3.2 mm
Number of markers per combination	1 MultiCard = Conductor and cable markers
Basic material	Polyamide 66
Colour of printing	black
Classifications	{'ETIM 6.0': 'EC001530', 'ETIM 7.0': 'EC001530', 'ETIM 8.0': 'EC001530', 'ETIM 9.0': 'EC001530', 'ETIM 10.0': 'EC001530', 'ECLASS 9.0': '27-40-04-01', 'ECLASS 9.1': '27-40-04-01', 'ECLASS 10.0': '27-40-04-01', 'ECLASS 11.0': '27-28-11-02', 'ECLASS 12.0': '27-28-11-02', 'ECLASS 13.0': '27-28-11-02', 'ECLASS 14.0': '27-28-11-02', 'ECLASS 15.0': '27-28-11-02'}
