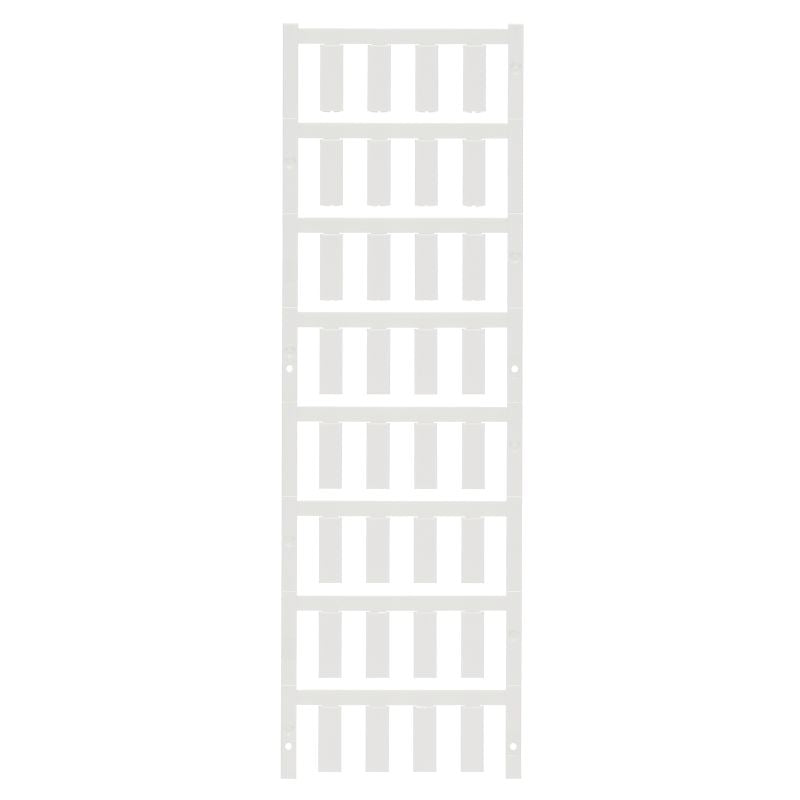

1918990000 - Polyamide MultiCard Cable Marker 21x7.4mm, -40 to 100°C (Pack of 32)

1918990000 - Polyamide MultiCard Cable Marker 21x7.4mm, -40 to 100°C (Pack of 32)

SKU: SKU: 1918990000 Download PDF

Variant:
  • 1918990000 - Polyamide MultiCard Cable Marker 21x7.4mm, -40 to 100°C (Pack of 32)
Regular price Now $18.89
Regular price BEFORE   $0.00 Sale price Now $18.89
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SF 45/21 MC SDR V2, your go-to solution for efficiently labeling conductors and cables This marker measures 21 x 74 mm and is constructed from robust polyamide 66, ensuring durability Capable of operating in extreme temperatures from -40 to 100 °C, it stands up to challenging environments Notably, this product meets RoHS compliance without exceptions and is free from any SVHC content exceeding 0.

1 wt% Each MultiCard contains a single conductor and cable marker, and you'll need an M-Print PRO file to print the required characters.

Features and Benefits:

    •Compliant with RoHS without exemptions.

    •Operating temperature range of -40 to 100 °C.

    •Print orientation is horizontal.

    •Compatible with PRINTJET CONNECT.

    •Halogen-free.

Specifications:

 Depth 6.5 mm
 Height 21 mm
 Width 7.4 mm
 Net weight 0.56 g
 Conductor cross-section, max 6 mm²
 Conductor cross-section, min 4 mm²
 Conductor O.D. 4.1 - 4.9 mm
 Number of markers per packaging unit MultiCard
 Size of labelling field 21 x 7.4 mm
 Printing method MC Laser
 UL 94 flammability rating V-2
 Advice label Colour based on customer requirements
