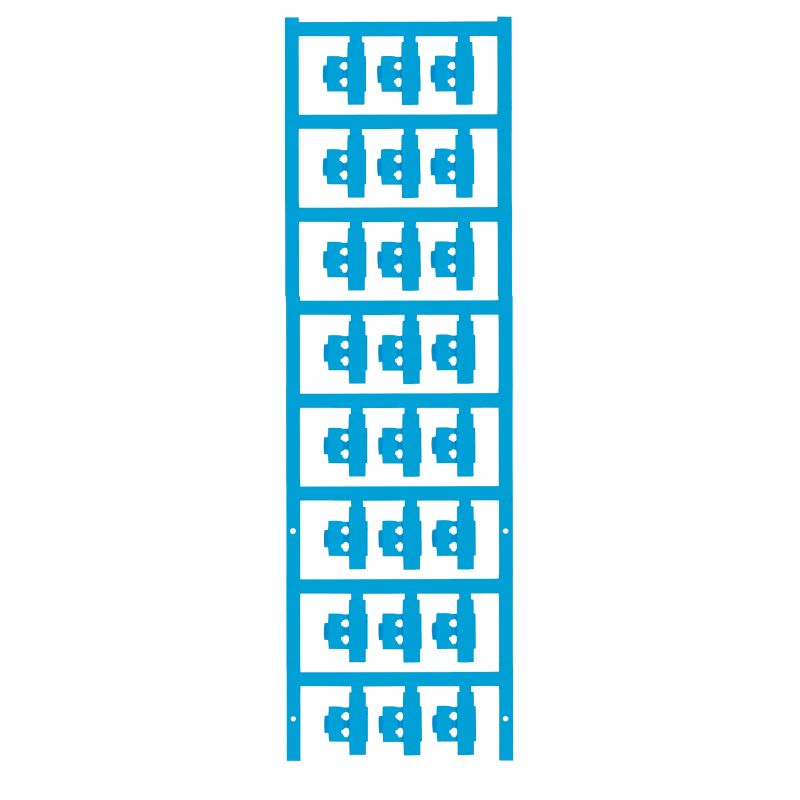

1805800000 - SlimFix Clip for 3-5 mm Wires, 21 x 5.8 mm (Pack of 24)

1805800000 - SlimFix Clip for 3-5 mm Wires, 21 x 5.8 mm (Pack of 24)

SKU: 1805800000   Download PDF

Select a Variant:
  • 1805800000 - SlimFix Clip for 3-5 mm Wires, 21 x 5.8 mm (Pack of 24)
Qty:
Now $10.06   Web pricing policy
BEFORE   $0.00 Now $10.06 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the SlimFix Clip, expertly crafted to accommodate wire diameters ranging from 3 mm to 5 mm With precise dimensions of 21 x 58 mm, this product is tailored to meet customer needs Designed with compliance to RoHS regulations, it contains no SVHC exceeding 01 wt% Additionally, it contributes to sustainability with a low carbon footprint of just 0008 kg CO2 equivalents from cradle to gate Perfect for organized wiring solutions!.

Features and Benefits:

    •Compliant with RoHS without exemption.

    •Operating temperature range from -40 to 100 °C.

    •Colour and printing options based on customer requirements.

    •UL 94 flammability rating of V-2.

    •Printing method is MC Laser.

Specifications:

 Depth 7.6 mm
 Height 21 mm
 Width 5.8 mm
 Conductor cross-section, max. 4 mm²
 Conductor cross-section, min. 3 mm²
 Conductor O.D. 3 - 5 mm
 Size of labelling field 21 x 5.8 mm
 Number of markers per combination 1 MultiCard = Conductor and cable markers
 Basic material Polyamide 66
 Colour of printing black
 Orientation of print horizontal
 Printed characters Requires M-Print PRO File
 Operating temperature range, max. 100 °C
 Operating temperature range, min. -40 °C
 Number of markers per packaging unit MultiCard
 GTIN (EAN) 4032248273539
