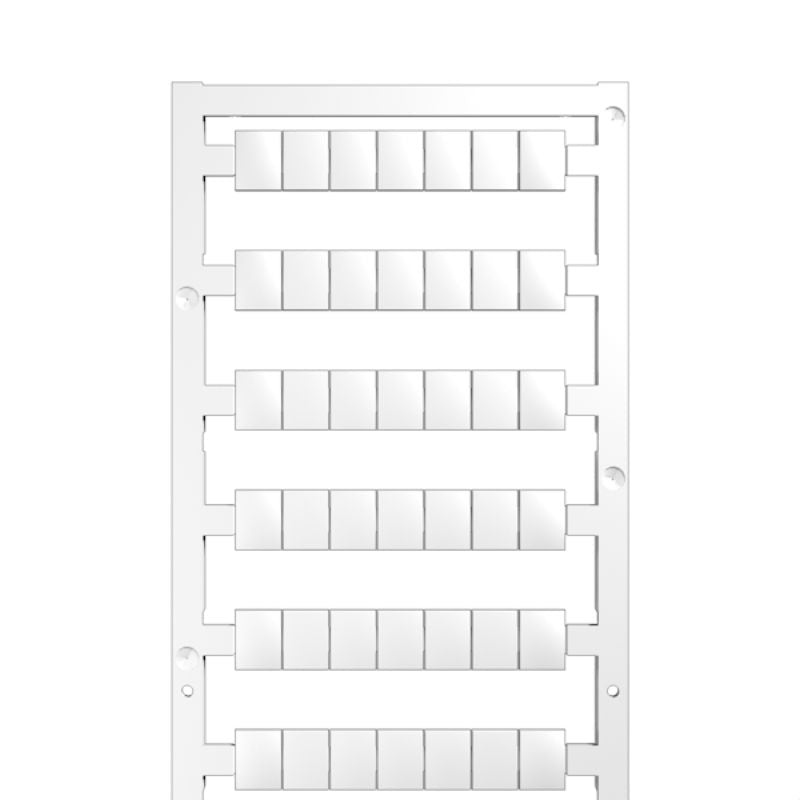

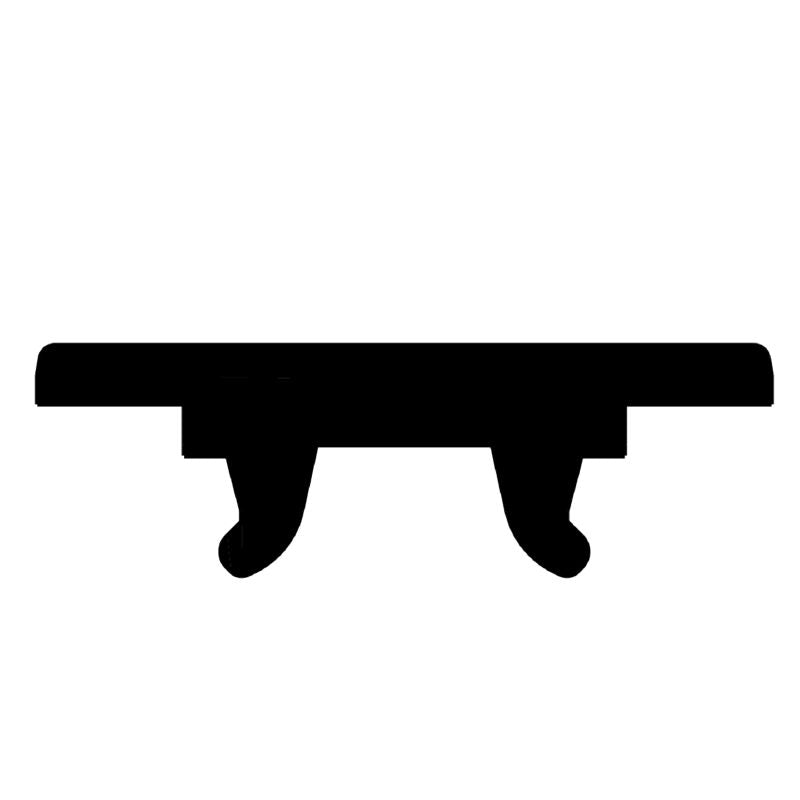

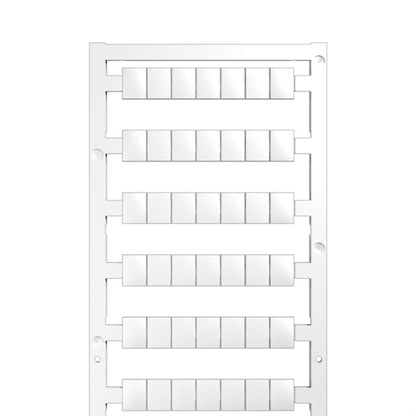

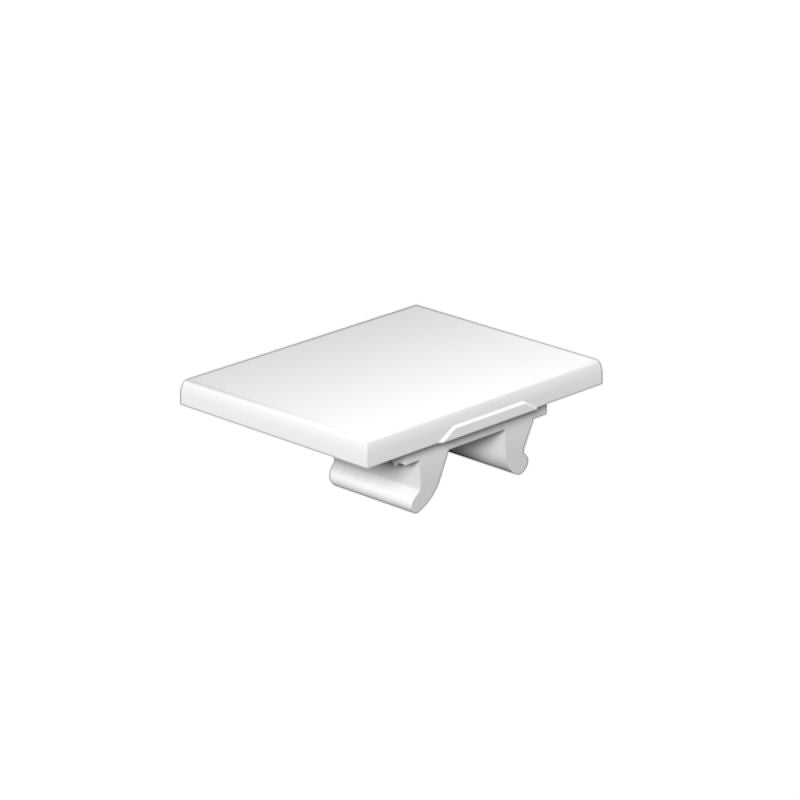

1906030000 - RoHS Compliant 10x8mm Terminal Marker, Pitch 8mm (Pack of 84)

SKU: SKU: 1906030000 Download PDF

Select a Variant:

1906030000 - RoHS Compliant 10x8mm Terminal Marker, Pitch 8mm (Pack of 84)

SET THE QTY:

Now $24.91 Web pricing policy

~~BEFORE $0.00~~ Now $24.91 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the WS 10/8 PLUS MC SDR terminal marker, designed to meet Weidmueller's rigorous standard specifications and fully compliant with RoHS regulations without any exemptions This marker measures 10 x 8 mm, featuring a convenient pitch of 800 mm, making it an essential tool for your labeling needs.

Features and Benefits:

•Compliant with RoHS regulations.

•Basic material made from Polyamide 66.

•Printing is done using MC Laser.

•UL 94 flammability rating of V-2.

•MultiCard form of supply.

•Requires M-Print PRO File for printed characters.

•Terminal marker applications.

Specifications:

Operating temperature range	-40...100 °C
Height	10 mm
Width	8 mm
Number of markers per combination	1 MultiCard = Terminal marker
Number of markers per packaging unit	MultiCard
Printed characters	Requires M-Print PRO File
Pitch in mm (P)	8 mm
Environmental Product Compliance	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%
Product Carbon Footprint	0.002 kg CO2eq.
Colour of printing	black
Halogen	No
Material colour according to resistance code	9
ETIM classifications	{'ETIM 6.0': 'EC000761', 'ETIM 7.0': 'EC000761', 'ETIM 8.0': 'EC000761', 'ETIM 9.0': 'EC000761', 'ETIM 10.0': 'EC000761'}
ECLASS classifications	{'ECLASS 9.0': '27-14-11-37', 'ECLASS 9.1': '27-14-11-37', 'ECLASS 10.0': '27-14-11-37', 'ECLASS 11.0': '27-28-11-01', 'ECLASS 12.0': '27-28-11-01', 'ECLASS 13.0': '27-28-11-01', 'ECLASS 14.0': '27-28-11-01', 'ECLASS 15.0': '27-28-11-01'}
