9457460200 - 2m M8 3-Pole Sensor/Actuator with LED and PUR Sheath

9457460200 - 2m M8 3-Pole Sensor/Actuator with LED and PUR Sheath

SKU: SKU: 9457460200

Variant:
  • 9457460200 - 2m M8 3-Pole Sensor/Actuator with LED and PUR Sheath
Regular price Now $10.31
Regular price BEFORE   $0.00 Sale price Now $10.31
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

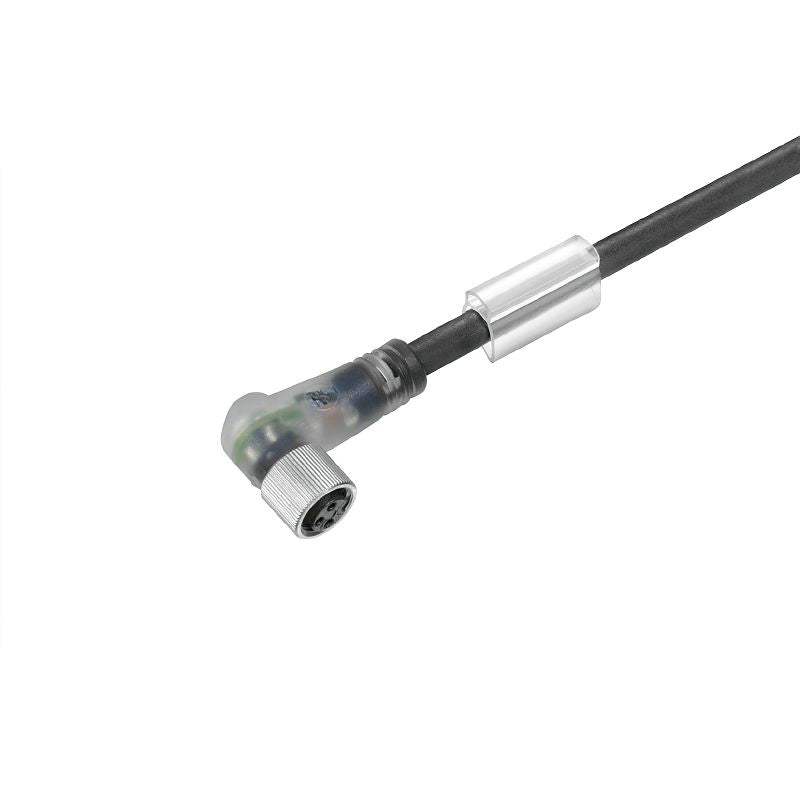

Introducing the sensor/actuator component that enhances your connectivity solutions This model boasts M8 connectors with three poles and is equipped with a 2-meter length, providing flexibility in installation The angled socket design ensures efficient space utilization, although it does not come with shielding This product is enhanced with an LED indicator for added functionality, and is crafted from halogen-free PUR material, emphasizing safety and environmental consciousness.

Features and Benefits:

    •LED indicator present.

    •Angle socket design.

    •PUR sheath material.

    •Halogen-free construction.

Specifications:

 Diameter 3.6 mm
 Cable length 2 m
 Core cross-section 0.25 mm²
 Nominal current 4 A
 Nominal voltage 24 V
 Protection degree IP67, IP68 when screwed in, IP65, IP66
 Temperature range, moving -25...60 °C
 Temperature range, stationary -50...80 °C
 Contact surface Gold-plated
 Threaded ring material Brass, nickel-plated
 Insulation resistance 10^8 Ω
 Operational Speed 3.33 m/s
 Bending cycles 5 million
