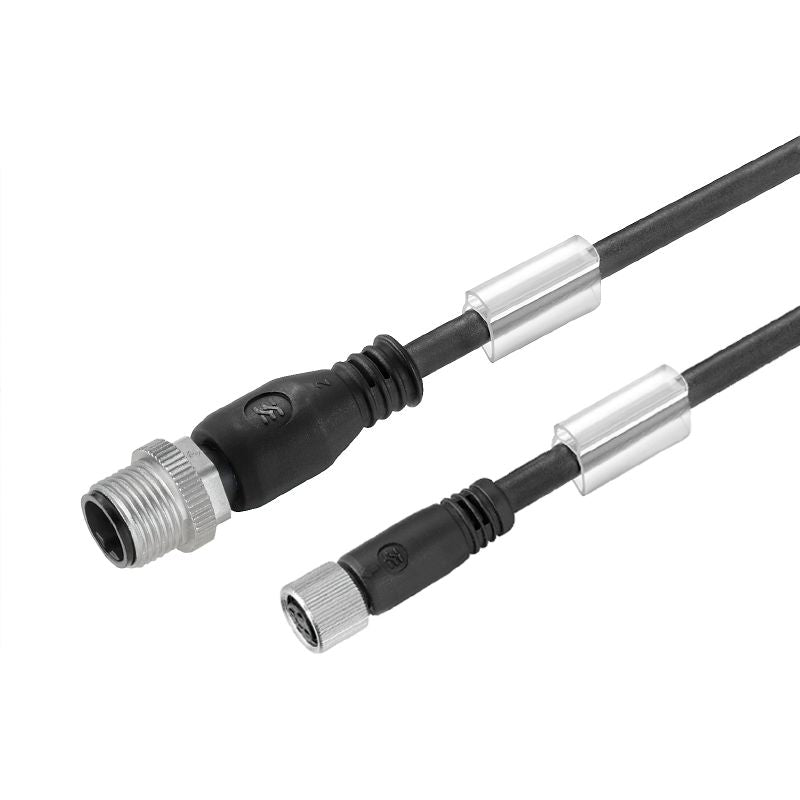

9457770030 - 0.3m M12 to M8 Sensor Actuator Cable, 3-Pole, PUR Sheath

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile sensor and actuator connection cable, equipped with M12 to M8 connectors With a length of 03 meters and a three-pole configuration, this cable offers a straightforward pin to socket connection Crafted from robust PUR sheath material, it adheres to RoHS standards and features a compact diameter of 36 mm Although it lacks shielding and an LED, this cable is designed for reliable performance in various applications, ensuring effective operation whether in motion or stationary, all while functioning within a designated temperature range.

Features and Benefits:

•3-pole configuration.

•Cable made from PUR sheath material.

•Compliant with RoHS standards.

•Diameter of 3.6 mm.

•No halogen content.

•Hydrolysis and microbe resistant.

•IP65, IP66, IP67, IP68, and IP69 protection when screwed in.

•Nominal current rated at 4 A.

•Nominal voltage rated at 60 V.

Specifications:
