9457950030 - 0.3m PUR Female Socket, 4-Pole Sensor/Actuator Cable

9457950030 - 0.3m PUR Female Socket, 4-Pole Sensor/Actuator Cable

SKU: SKU: 9457950030

Variant:
  • 9457950030 - 0.3m PUR Female Socket, 4-Pole Sensor/Actuator Cable
Regular price Now $8.80
Regular price BEFORE   $0.00 Sale price Now $8.80
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

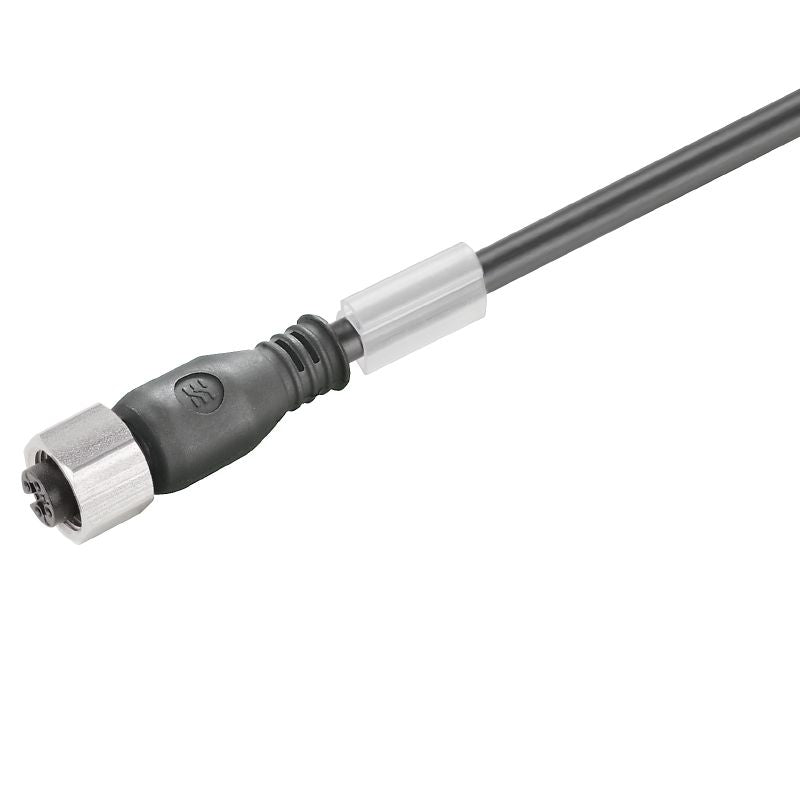

Introducing a robust and reliable component from the sensor/actuator series, featuring a female socket design without a connector This flexible lead extends 03 meters in length and is equipped with 4 poles It is crafted from durable PUR material, ensuring it’s halogen-free and compliant with various environmental regulations While it does not include shielding or an LED, it meets specific certifications to guarantee quality and efficiency for your applications.

Features and Benefits:

    •Environmentally compliant with RoHS and REACH.

    •Robust design for frequent use and durability.

    •Suitable for applications requiring a connection with M12 thread.

Specifications:

 Acceleration 5 m/s²
 Bending cycles 12 Mio
 Cable length 0.3 m
 Core cross-section 0.34 mm²
 Connection thread M12
 Nominal current 4 A
 Nominal voltage 250 V
 Protection degree IP65, IP66, IP67, IP68
 Temperature range, moving -25...60 °C
 Temperature range, stationary -50...80 °C
 Outside diameter 4.1 mm + 0.15 mm
 Sheath material PUR
