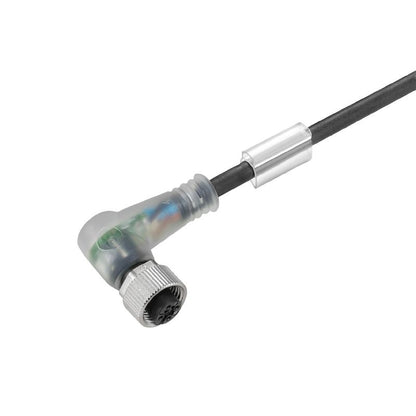

9457800150 - 1.5m M12 Sensor/Actuator Line with LED and Angled Socket

9457800150 - 1.5m M12 Sensor/Actuator Line with LED and Angled Socket

SKU: SKU: 9457800150

Select a Variant:
  • 9457800150 - 1.5m M12 Sensor/Actuator Line with LED and Angled Socket
Qty:
Regular price Now $10.29   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $10.29 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the SAIL-M12BW-3L15U, a versatile sensor/actuator line designed for efficiency This model boasts a 15-meter length and features a M12 configuration, with one end that is open for versatile connection options Its innovative angled socket design enhances accessibility, while the integrated LED provides visual feedback Crafted from high-quality PUR material, this component is halogen-free, making it a safe and reliable choice for various applications.

Features and Benefits:

    •A socket with angled design.

    •Equipped with LED.

    •Sheath material is PUR, ensuring durability.

    •RoHS compliant with specific exemptions.

    •Insulation resistance of 10^8 Ω.

Specifications:

 Diameter 3.8 mm
 Cable length 1.5 m
 Core cross-section 0.34 mm²
 Nominal current 4 A
 Nominal voltage 24 V
 Temperature range, moving -25...60 °C
 Temperature range, stationary -50...80 °C
 Bending radius, min., moving 10 x cable diameter
 Bending radius, min., stationary 5 x cable diameter
 Insulation PP
 Resistance to oils Yes
 Speed 3.33 m/s
 Protection degree IP65, IP66, IP67, IP68 when screwed in
 Threaded ring material Diecast zinc
 Plugging cycles ≥ 100
