9457803500 - 35m M12 Sensor/Actuator Cable with LED Indicator

9457803500 - 35m M12 Sensor/Actuator Cable with LED Indicator

SKU: SKU: 9457803500

Variant:
  • 9457803500 - 35m M12 Sensor/Actuator Cable with LED Indicator
Regular price Now $40.60
Regular price BEFORE   $0.00 Sale price Now $40.60
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

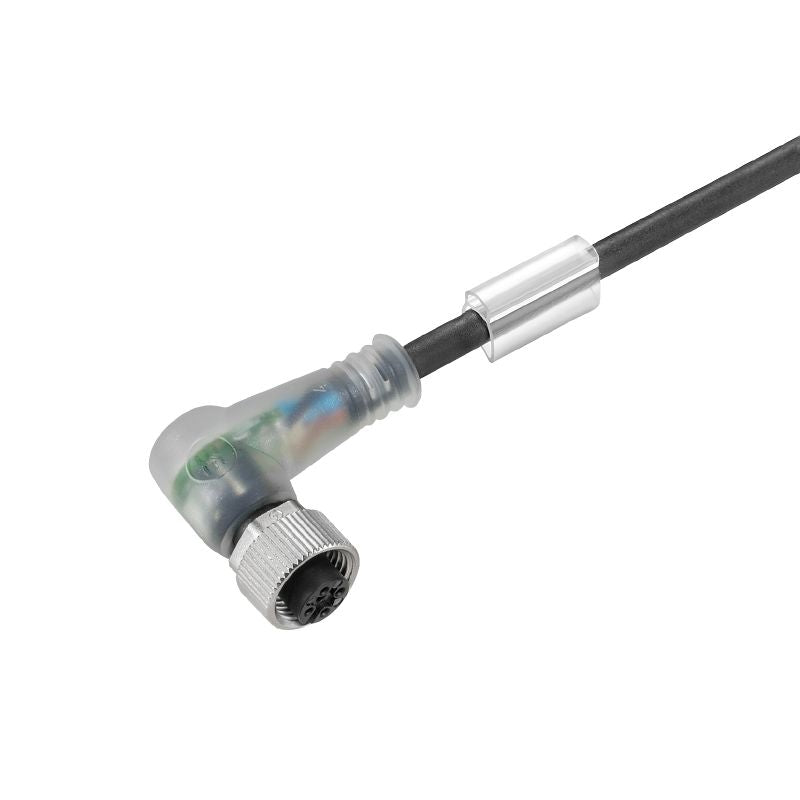

Enhance your connectivity with the SAIL-M12BW-3L35U sensor/actuator line, designed for versatile applications This 35-meter cable features an M12 angled socket with a three-pole configuration and does not have a connector at one end Crafted from halogen-free PUR material, it is unshielded and comes equipped with an LED indicator to facilitate connection status visibility.

Features and Benefits:

    •LED present.

    •Environmental compliance with RoHS and REACH.

    •Hydrolysis and microbe resistant.

    •LABS-free.

    •Suitable for cable carriers.

Specifications:

 Diameter 3.8 mm
 Cable length 35 m
 Core cross-section 0.34 mm²
 Nominal current 4 A
 Nominal voltage 24 V
 Insulation resistance 10^8 Ω
 Protection degree IP67, IP68 when screwed in, IP65, IP66
 Speed 3.33 m/s
 Temperature range, moving -25...60 °C
 Temperature range, stationary -50...80 °C
 Bending radius, min., moving 10 x cable diameter
 Bending radius, min., stationary 5 x cable diameter
 Plugging cycles ≥ 100
