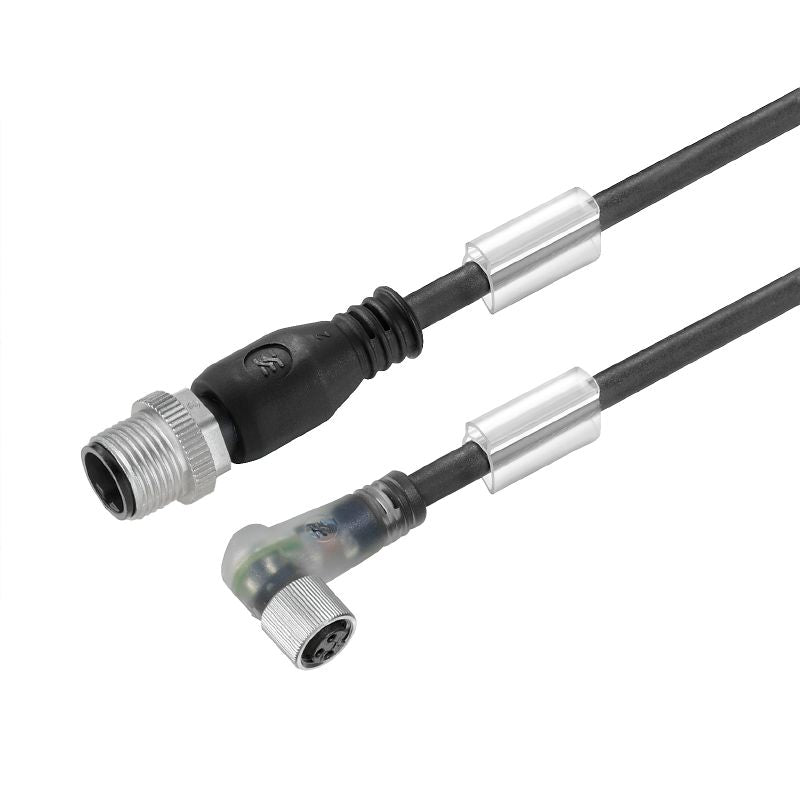

9457760150 - 1.5m M12/M8 3-Pole Connecting Line with LED Indicator

9457760150 - 1.5m M12/M8 3-Pole Connecting Line with LED Indicator

SKU: SKU: 9457760150 Download PDF

Variant:
  • 9457760150 - 1.5m M12/M8 3-Pole Connecting Line with LED Indicator
Regular price Now $15.12
Regular price BEFORE   $0.00 Sale price Now $15.12
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile connecting line ideal for sensor and actuator applications, equipped with M12 and M8 connectors This cable features a 90° angle straight pin socket and measures 15 meters in length with 3 poles for efficient connectivity Although it is unshielded, it is equipped with an LED for added functionality Constructed from PUR, this sheath material is not halogen-free, making it a reliable choice for your connectivity needs.

Features and Benefits:

    •LED included.

    •Sheath material made of PUR.

    •Bending cycles rated for 5 million.

    •Excellent hydrolysis and microbe resistance.

    •Suitable for cable carriers.

Specifications:

 Diameter 3.6 mm
 Cable length 1.5 m
 Core cross-section 0.25 mm²
 Number of poles 3
 Insulation resistance 10^8 Ω
 Nominal current 4 A
 Nominal voltage 24 V
 Protection degree IP65, IP66, IP67, IP68 when screwed in
 Temperature range, moving -25...60 °C
 Temperature range, stationary -50...80 °C
