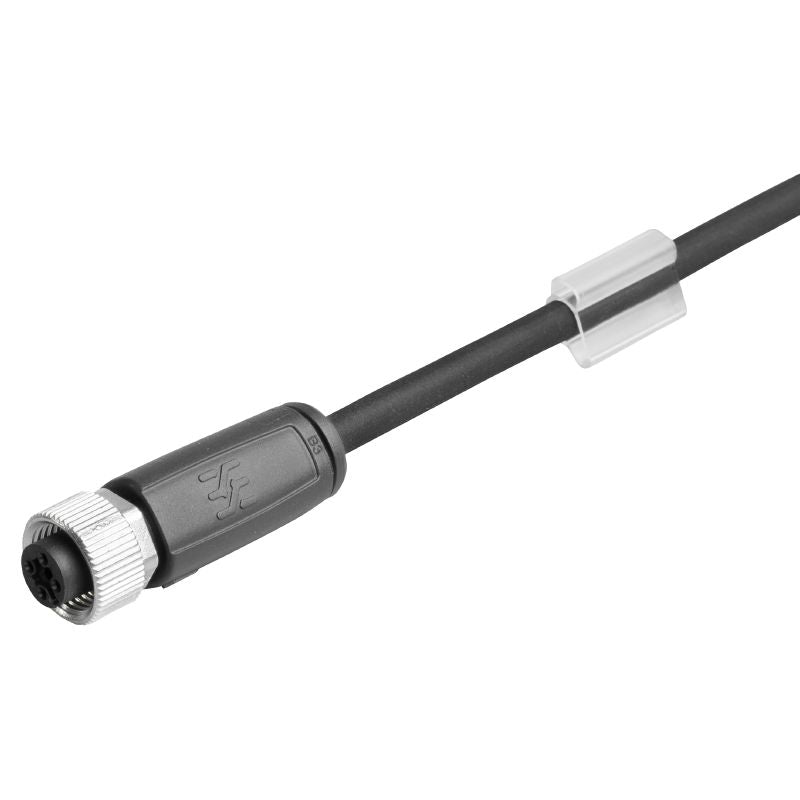

9457821500 - 15m M12 Sensor/Actuator Line, 3 Poles, PUR Sheath

9457821500 - 15m M12 Sensor/Actuator Line, 3 Poles, PUR Sheath

SKU: SKU: 9457821500

Select a Variant:
  • 9457821500 - 15m M12 Sensor/Actuator Line, 3 Poles, PUR Sheath
Qty:
Regular price Now $18.81   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $18.81 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a versatile sensor/actuator line featuring a straight alignment M12 female socket, thoughtfully designed without a connector at one end This unshielded cable offers three poles and extends to a generous length of 15 meters Crafted from halogen-free PUR material, it ensures safety and reliability in various environments, making it an ideal choice for your needs Please note, this product does not include an LED.

Features and Benefits:

    •Diameter of 3.8 mm.

    •Weight of 322.08 g.

    •Compliant with RoHS and REACH.

    •Configured without halogen.

    •Hydrolysis and microbe resistant.

    •LABS-free.

    •Temperature range for stationary use: -50 to 80 °C.

    •Temperature range for moving use: -25 to 60 °C.

    •Suitable for cable carriers.

Specifications:

 Cable Length 15 m
 Core Cross-Section 0.34 mm²
 Nominal Current 4 A
 Nominal Voltage 250 V
 Insulation Resistance 10^8 Ω
 Protection Degree IP65, IP66, IP67, IP68, IP69 when screwed in
 Resistance to Oils Yes
 Bending Cycles 12 Mio
 Temperature Range of Housing -25…+85 °C
 Tightening Torque M12: 0.8 - 1.2 Nm
 Bending Radius, Min., Moving 10 x cable diameter
 Bending Radius, Min., Stationary 5 x cable diameter
