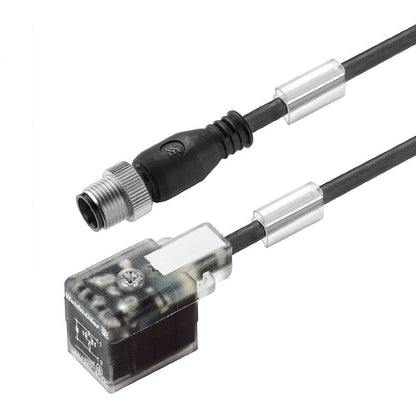

9457781000 - 10m Black PUR Valve Cable with M12 Connector

9457781000 - 10m Black PUR Valve Cable with M12 Connector

SKU: SKU: 9457781000   Download PDF

Select a Variant:
  • 9457781000 - 10m Black PUR Valve Cable with M12 Connector
Qty:
Regular price Now $24.00   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $24.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a convenient pre-assembled valve cable featuring a straight plug that adheres to DIN standard B (10 mm) along with an A-coded M12 connector Spanning 10 meters in length, this cable is constructed from durable black PUR material, ensuring long-lasting performance It meets RoHS regulations and includes a Zener diode for circuit protection, making it an ideal choice for a wide range of applications.

Features and Benefits:

    •Compliant with RoHS regulations.

    •Lightweight at 325 g.

    •High flexibility with a minimum bending radius of 10 times the cable diameter when moving.

    •Offers high-speed capabilities up to 200 m/s.

    •Designed for up to 2 million bending cycles.

    •Suitable for cable carriers.

Specifications:

 Cable length 10 m
 Core cross-section 0.5 mm²
 Number of poles 3
 Outside diameter 4.6 mm ± 0.2 mm
 Sheath material PUR
 Sheathing colour black
 Temperature range, moving -25...80 °C
 Temperature range, stationary -50...80 °C
 Nominal current 4 A
 Nominal voltage 24 V
 Protection degree IP67 when screwed in
 Contact material CuZn
 Contact surface tinned
 Bending cycles 2 Mio
 Acceleration 5 m/s²
 Halogen No
 LED Yes
 Torsion resistance 0 °/m
