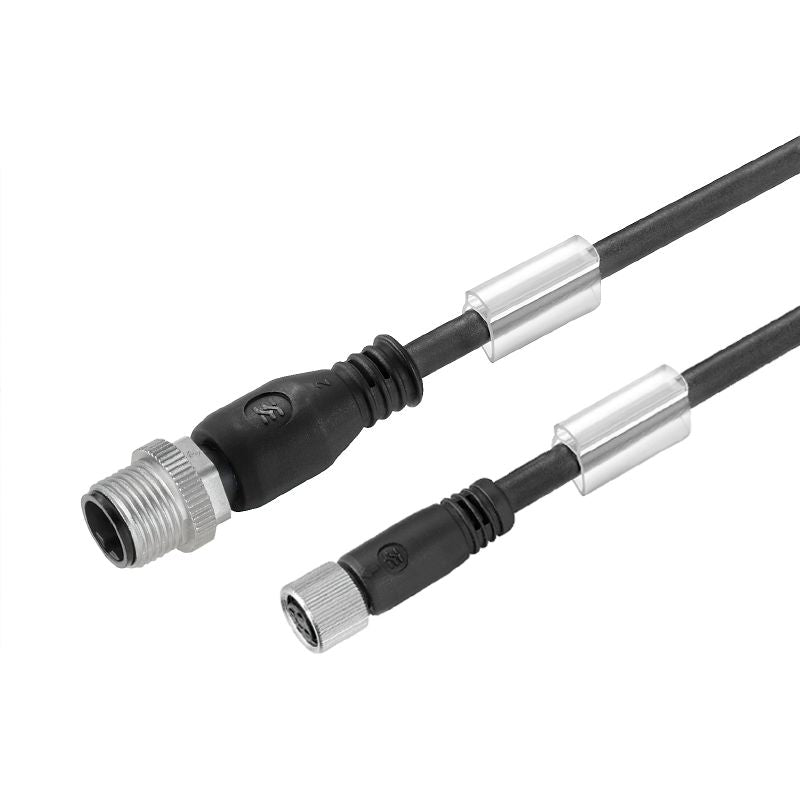

9457770190 - 1.9m M12/M8 Sensor/Actuator Line with 3 Poles

9457770190 - 1.9m M12/M8 Sensor/Actuator Line with 3 Poles

SKU: SKU: 9457770190   Download PDF

Select a Variant:
  • 9457770190 - 1.9m M12/M8 Sensor/Actuator Line with 3 Poles
Qty:
Regular price Now $11.77   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $11.77 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

This sensor/actuator connecting cable comes equipped with M12 and M8 connectors, boasting a generous length of 19 meters and featuring three poles Made from durable PUR sheath material, it is free of shielding and LED indicators, ensuring a straightforward design Additionally, this line is halogen-free for added safety.

Features and Benefits:

    •Compliant with RoHS regulations.

    •Hydrolysis and microbe resistant.

    •Resistant to oils.

    •Suitable for cable carriers.

Specifications:

 Diameter 3.6 mm
 Cable length 1.9 m
 Core cross-section 0.25 mm²
 Nominal current 4 A
 Nominal voltage 60 V
 Insulation resistance 10^8 Ω
 Protection degree IP69, IP65, IP66
 Temperature range, moving -25...60 °C
 Temperature range, stationary -50...80 °C
 Plug, left M12, A-coded, IP69, male contact, straight, Plastic, unshielded
 Plug, right M8, IP69, female contact, straight, Plastic, LED, unshielded
 Bending cycles 5 Mio
 Bending radius, min., moving 10 x cable diameter
 Bending radius, min., stationary 5 x cable diameter
 Speed 3.33 m/s
 Torsion resistance 180 °/m
