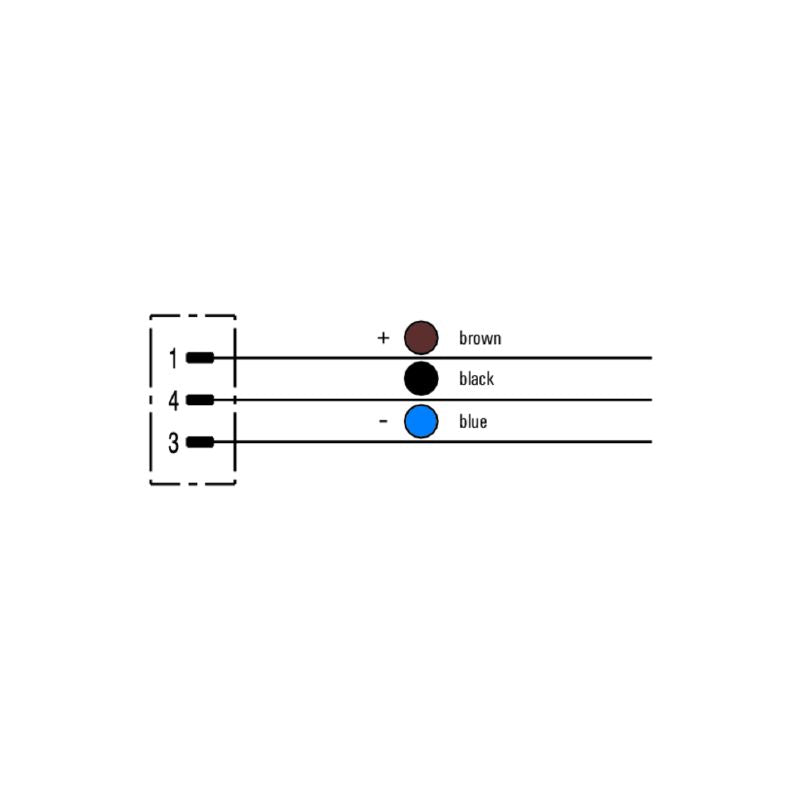

9457810150 - 1.5m M12 3-Pole Connector-Less Sensor/Actuator Line

9457810150 - 1.5m M12 3-Pole Connector-Less Sensor/Actuator Line

SKU: SKU: 9457810150

Variant:
  • 9457810150 - 1.5m M12 3-Pole Connector-Less Sensor/Actuator Line
Regular price Now $6.60
Regular price BEFORE   $0.00 Sale price Now $6.60
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing this innovative product from the sensor/actuator series, featuring a user-friendly connector-less design It offers an M12 connection with three poles and boasts a generous length of 15 meters This straight pin design excludes shielding and LED indicators, making it straightforward and functional Crafted from halogen-free PUR sheath material, it ensures safety and environmental compliance.

Features and Benefits:

    •Compliant with RoHS and REACH standards.

    •Lightweight design with a weight of 40.48 grams.

    •Suitable for cable carriers.

Specifications:

 Diameter 3.8 mm
 Cable length 1.5 m
 Core cross-section 0.34 mm²
 Nominal current 4 A
 Nominal voltage 250 V
 Bending cycles 12 Mio
 Bending radius, min., moving 10 x cable diameter
 Bending radius, min., stationary 5 x cable diameter
 Temperature range, moving -25...60 °C
 Temperature range, stationary -50...80 °C
 Protection degree IP65, IP66, IP67, IP68, IP69 when screwed in
 Insulation resistance 10^8 Ω
 Plugging cycles ≥ 100
 Weight 40.48 g
