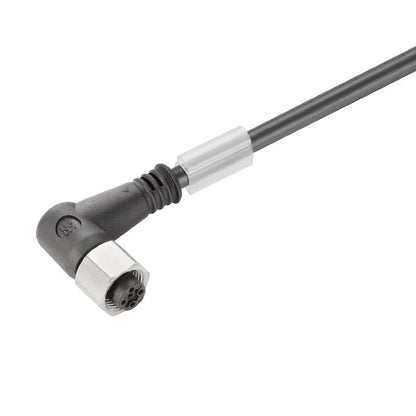

9457961500 - 15m M12 Sensor Cable, 4-Pole, Angled PUR Sheath

9457961500 - 15m M12 Sensor Cable, 4-Pole, Angled PUR Sheath

SKU: SKU: 9457961500

Select a Variant:
  • 9457961500 - 15m M12 Sensor Cable, 4-Pole, Angled PUR Sheath
Qty:
Regular price Now $24.57   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $24.57 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Discover the versatility of this sensor/actuator component, featuring a straight design without a connector at one end It is designed with an M12 configuration that incorporates four poles, and boasts a generous length of 15 meters The angled socket provides enhanced accessibility, while the lack of shielding and an LED keeps the design straightforward Crafted from PUR, this product is not only durable but also halogen-free, making it a reliable choice for your needs.

Features and Benefits:

    •RoHS compliant with exemption.

    •Hydrolysis and microbe resistant.

    •LABS-free.

    •Suitable for cable carriers.

    •Resistance to oils.

    •High insulation resistance.

Specifications:

 Acceleration 5 m/s²
 Bending cycles 12 Mio
 Bending cycles at torsion > 5 Mio.
 Bending radius, min., moving 10 x cable diameter
 Bending radius, min., stationary 5 x cable diameter
 Cable length 15 m
 Core cross-section 0.34 mm²
 Halogen No
 Insulation PP
 Outer diameter 4.1 mm + 0.15 mm
 Nominal current 4 A
 Nominal voltage 250 V
 Plugging cycles ≥ 100
 Protection degree IP65, IP66, IP67, IP68 when screwed in
 Temperature range, moving -25...60 °C
 Temperature range, stationary -50...80 °C
