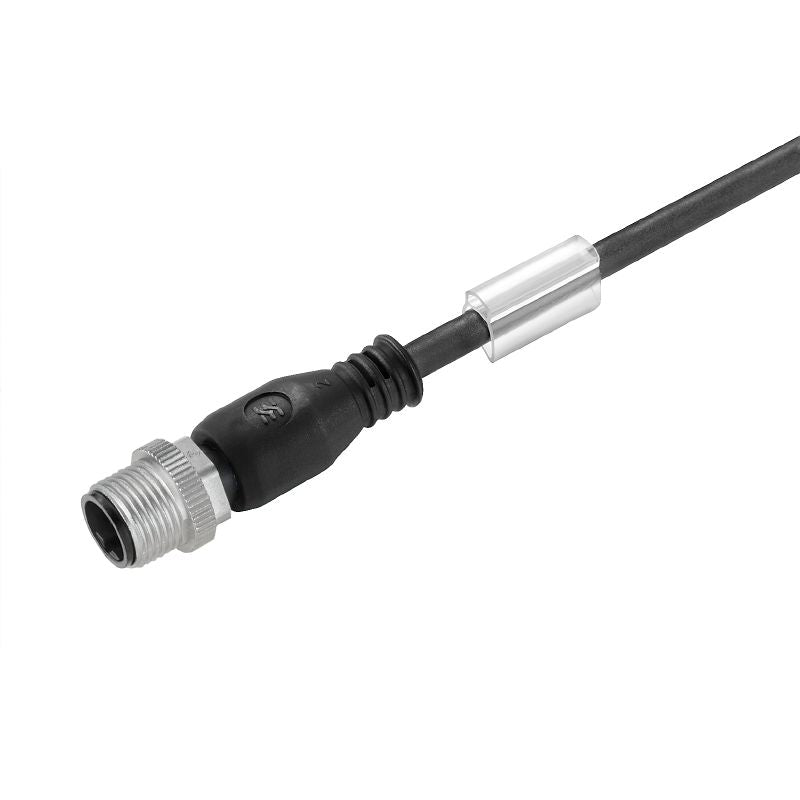

9457810250 - 2.5m M12 Sensor/Actuator Line with 3 Poles

SKU: SKU: 9457810250

Select a Variant:

9457810250 - 2.5m M12 Sensor/Actuator Line with 3 Poles

SET THE QTY:

Now $7.51 Web pricing policy

~~BEFORE $0.00~~ Now $7.51 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Reviews

Product Information

Description:

This sensor/actuator product is a versatile component featuring a connector-free end It boasts an M12 configuration with 3 poles, and its length spans 25 meters Designed with a straight connection, this unit is unshielded and does not incorporate an LED indicator Its durable sheath is made from PUR and is halogen-free, making it a reliable choice for various applications.

Features and Benefits:

•Not shielded.

•No LED present.

•Sheath made of PUR.

•Halogen-free.

•Resistance to hydrolysis and microbes.

•Welding spark resistance not provided.

•Suitable for cable carriers.

Specifications:

Acceleration:	5 m/s²
Bending cycles:	12 Mio
Bending cycles at torsion:	> 5 Mio.
Bending radius, min., moving:	10 x cable diameter
Bending radius, min., stationary:	5 x cable diameter
Cable length:	2.5 m

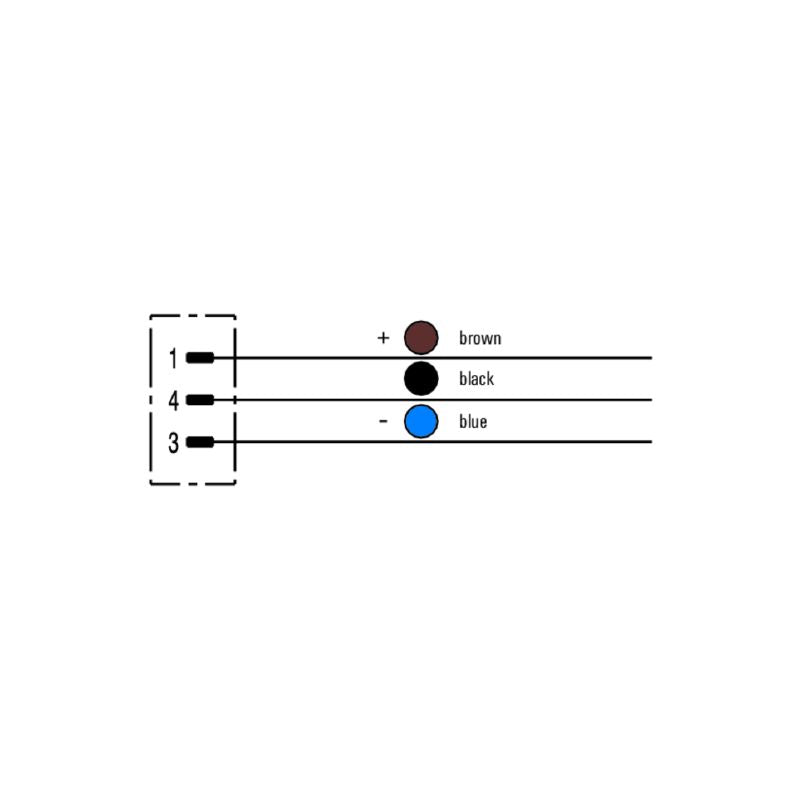

Colour coding:	brown, blue, black
Configurable cable length:	No
Core cross-section:	0.34 mm²
Core in accordance with UL AWM style:	10493 (80 °C / 300 V)
Halogen:	No
Hydrolysis and microbe resistant:	Yes
Insulation:	PP
Irradiation crosslinked:	No
LABS-free:	Yes
Length of torsion:	1 m
Number of poles:	3
Outer cladding in accordance with UL AWM style:	20549 (80 °C / 300 V)
Outside diameter:	4.3 mm ± 0.2 mm
Resistance to oils:	in accordance with IEC 60811:404
Resistance to spread of flame:	In accordance with UL1581 UL / CUL FT2, in accordance with IEC 60332-2-2
Resistant to welding beads:	No
Sheath material:	PUR
Sheathing colour:	black
Speed:	5 m/s
Temperature range, moving:	-25...80 °C
Temperature range, stationary:	-40...80 °C
Torsion resistance:	360 °/m
General technical data	{'Coding:': 'A-coded', 'Connection thread:': 'M12', 'Contact surface:': 'Gold-plated', 'Housing main material:': 'PUR', 'Insulation resistance:': '10 8 Ω', 'jumpered:': 'No', 'LED:': 'No', 'Nominal current:': '4 A', 'Nominal voltage:': '250 V', 'Plugging cycles:': '≥ 100', 'Pollution severity:': '3', 'Protection degree:': 'IP65, IP66, IP67, IP68, IP69 when screwed in', 'Temperature range of housing:': '-25…+85 °C', 'Threaded ring material:': 'Diecast zinc', 'Tightening torque:': 'M12: 0.8 - 1.2 Nm', 'Version:': 'pin, straight'}
Electrical properties	{'Insulation resistance:': '10 8 Ω', 'Nominal voltage:': '250 V'}
General standards	{'Certificate no. (cULus):': 'E307231', 'Connector standard:': 'IEC 61076-2-101'}
Classifications	{'ETIM 6.0:': 'EC001855', 'ETIM 7.0:': 'EC001855', 'ETIM 8.0:': 'EC001855', 'ETIM 9.0:': 'EC001855', 'ETIM 10.0:': 'EC001855', 'ECLASS 9.0:': '27-06-03-11', 'ECLASS 9.1:': '27-06-03-11', 'ECLASS 10.0:': '27-06-03-11', 'ECLASS 11.0:': '27-06-03-11', 'ECLASS 12.0:': '27-06-03-11', 'ECLASS 13.0:': '27-06-03-11', 'ECLASS 14.0:': '27-06-03-11', 'ECLASS 15.0:': '27-06-03-11'}
