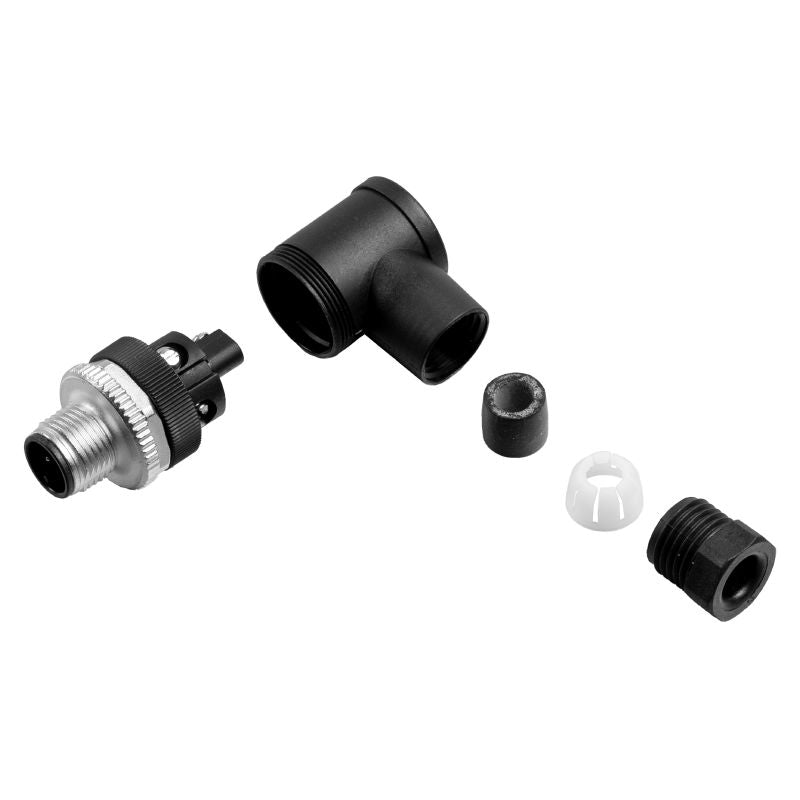

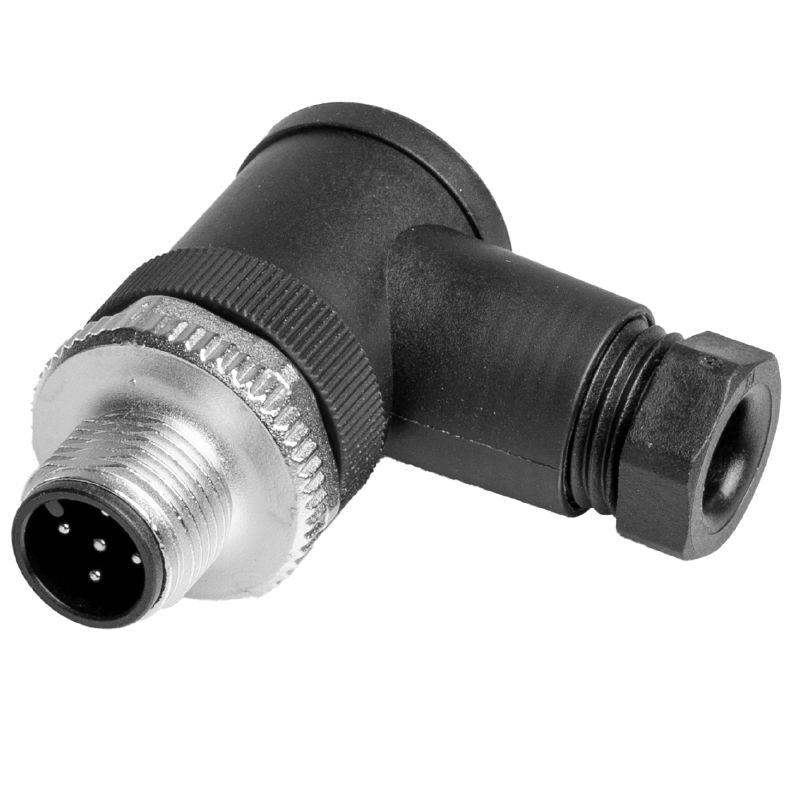

9456950000 - M12 Field Attachable Connector, IP67, 4-6mm Diameter

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience reliability and performance with this M12 field attachable connector Meeting RoHS standards and boasting a UL certification, this connector is engineered for versatility It accommodates cables with diameters ranging from 4 mm to 6 mm and features a male contact Designed for efficiency, it supports conductor cross-sections between 014 mm² and 075 mm² The contact surface, crafted from CuSnZn and gold plated in the 8-pole version, ensures excellent conductivity.

With a capacity to handle a nominal current of 4 A and a voltage of 60 V, this connector is robust enough for demanding environments It is rated for a minimum of 50 plugging cycles and provides outstanding protection against dust and moisture with an IP67 rating Suitable for temperature extremes from -40 to +85 °C, it is ideal for various applications.

Features and Benefits:

•Field attachable design.

•Robust construction with diecast zinc threaded ring.

•A-coded connector for specific applications.

•High insulation resistance of 10^8 Ω.

•Compliant with multiple connector standards (IEC 61076-2-101).

•Protection degree IP67 for durability in harsh environments.

Specifications:
