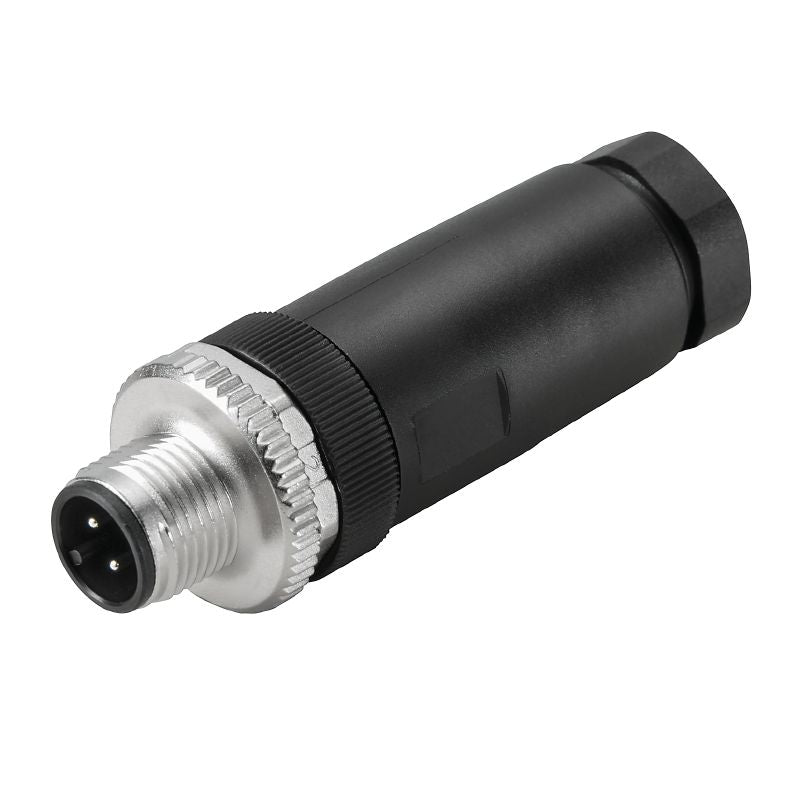

9456940000 - M12 Field Attachable Connector, IP67, -40 to +85 °C

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing this M12 field attachable connector, expertly crafted to meet RoHS standards and bearing a UL certification for quality assurance It accommodates cables with diameters between 4 mm and 6 mm, featuring an A-coded configuration for versatile integration This connector supports conductor cross-sections from 014 mm² to 075 mm², making it suitable for a wide range of applications The male contact surface boasts a durable CuSnZn composition, and the 8-pole variants are enhanced with gold plating for superior conductivity.

Encased in robust PA material, the housing withstands extreme temperatures from -40 to +85 °C, ensuring functionality across various environmental conditions Designed for high performance, it features excellent insulation resistance and can handle a nominal current of 4 A and voltage of 60 V With an IP67 rating, it offers exceptional sealing against dust and moisture, perfect for demanding settings.

Additionally, this connector is built to endure a minimum of 50 plugging cycles, making it a reliable choice for your connectivity needs.

Features and Benefits:

•RoHS compliant.

•IP67 protection degree.

•High insulation resistance values.

•Temperature range of -40 to +85 °C.

•Screw connection.

•Durable with ≥ 50 plugging cycles.

Specifications:
