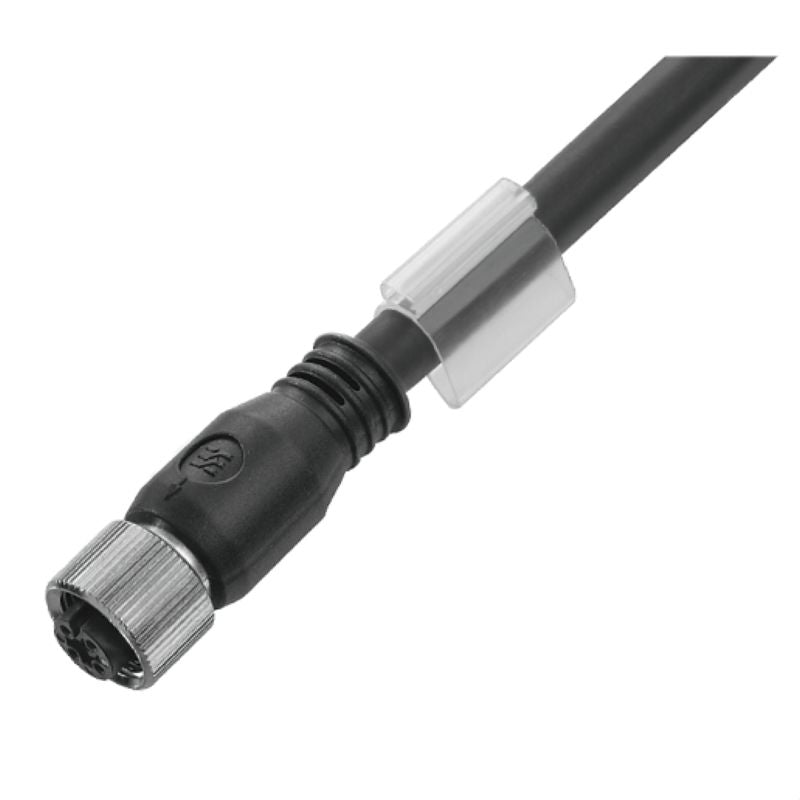

9456142000 - 20m M12 Sensor/Actuator Line with 5 Shielded Poles

9456142000 - 20m M12 Sensor/Actuator Line with 5 Shielded Poles

SKU: SKU: 9456142000

Select a Variant:
  • 9456142000 - 20m M12 Sensor/Actuator Line with 5 Shielded Poles
Qty:
Regular price Now $71.42   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $71.42 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the M12 sensor/actuator line designed for optimal performance and versatility This 20-meter cable features 5 poles and a straight female socket without a connector on one end Constructed from durable PUR material, it is shielded for enhanced protection, although it is not halogen-free Adhering to environmental regulations, this product is RoHS and UL certified, ensuring compliance with industry standards for safety and sustainability.

Features and Benefits:

    •5 poles.

    •Shielded.

    •Length of 20 meters.

    •Suitable for cable carriers.

    •Hydrolysis and microbe resistant.

    •Resistance to oils.

    •Temperature range for moving: -25 to 80 °C.

    •Temperature range for stationary: -40 to 80 °C.

    •IP65, IP66, IP67, IP68 protection degree.

Specifications:

 Bending cycles 2 Mio
 Cable length 20 m
 Core cross-section 0.34 mm²
 Outside diameter 5.7 mm ± 0.2 mm
 Nominal current 4 A
 Nominal voltage 60 V
 Insulation resistance 10^8 Ω
 Plugging cycles ≥ 100
 Protection degree IP65, IP66, IP67, IP68
 Tightening torque M12: 0.8 - 1.2 Nm
 Housing main material PUR
 Threaded ring material Diecast zinc
