2968390000 - M12 B-Coded Male Connector, IP67, 4-9mm Diameter

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

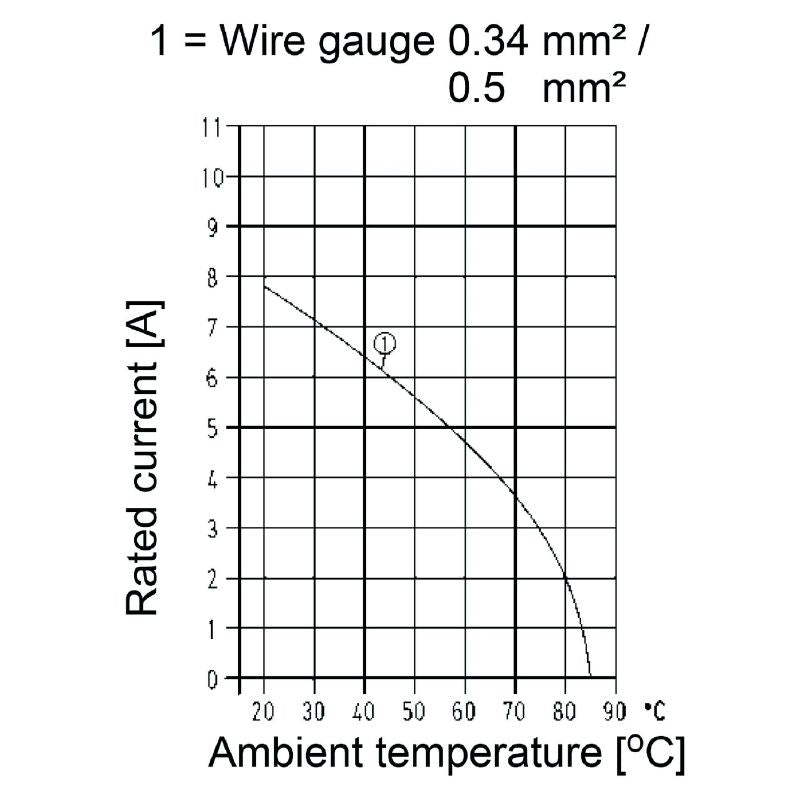

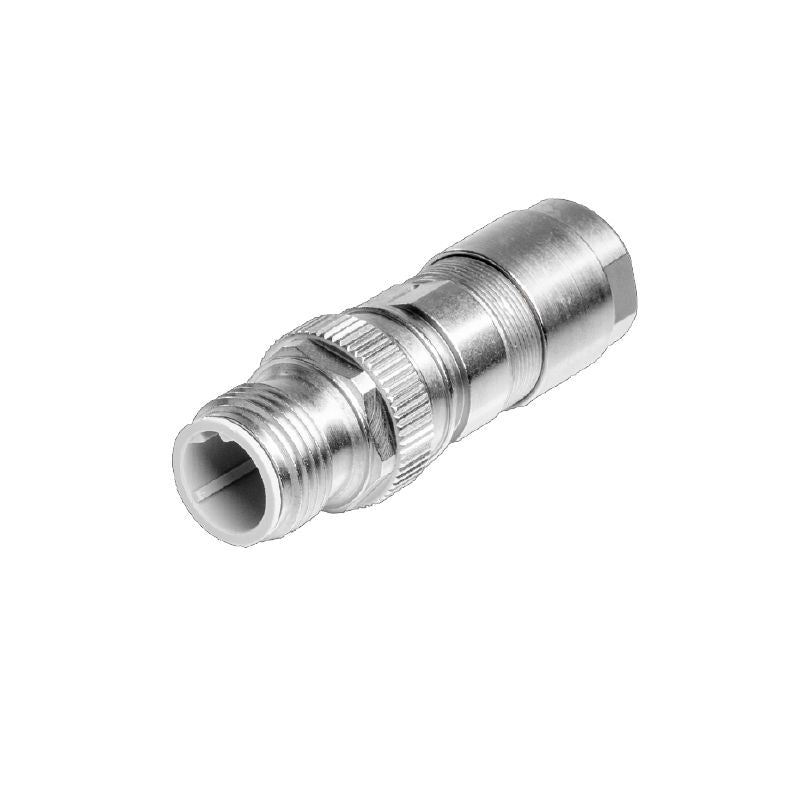

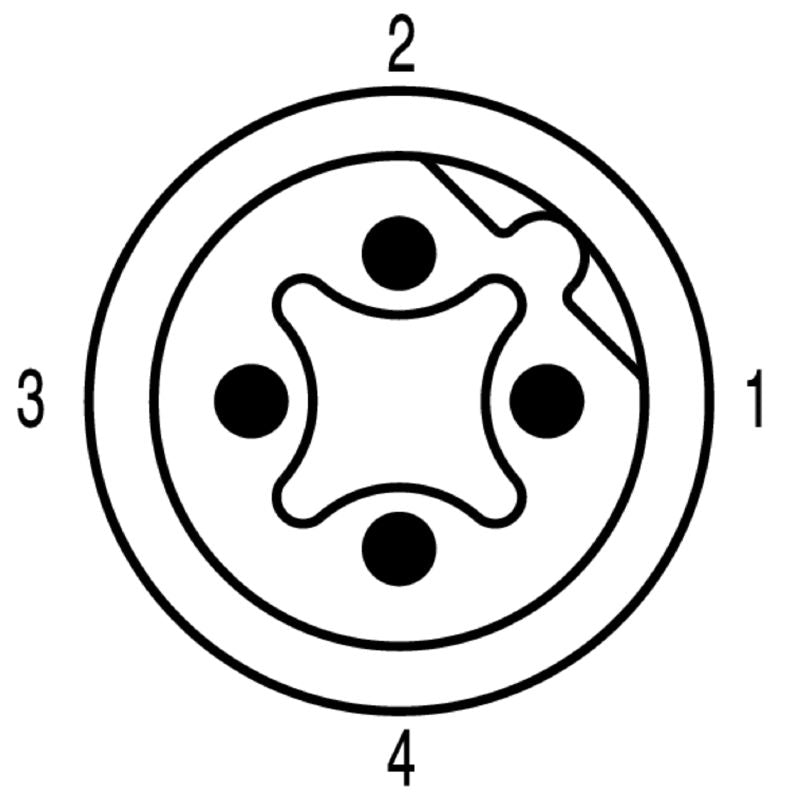

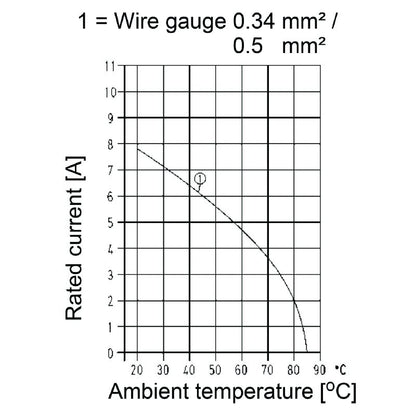

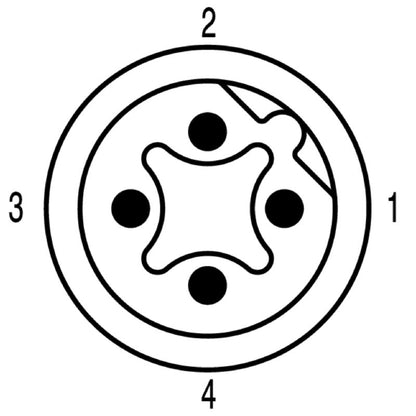

This field-attachable M12 connector is engineered for versatility, accommodating cables with diameters ranging from 4 mm to 9 mm It features a robust B-coded configuration with male connectors, all complemented by gold-plated contact surfaces for optimal conductivity The housing is crafted from a durable copper alloy, which is finished with nickel plating for enhanced durability Rated for a nominal current of 4 A at 50 V, this connector is capable of enduring up to 250 insertion cycles.

When securely connected, it offers IP67-rated protection, and it operates seamlessly within a temperature spectrum of -40 to +85 °C, making it ideal for various applications.

Features and Benefits:

•Gold-plated contact surface.

•IP67 protection when screwed in.

•Crimp connection type.

•Threaded ring made of brass, nickel-plated.

•Support for finely stranded conductors with a maximum cross-section of 0.82 mm².

•Compatible with M12 connections.

Specifications:
