2968030000 - M12 5-Pole Female Socket with 0.2m Cable, M16 Thread

2968030000 - M12 5-Pole Female Socket with 0.2m Cable, M16 Thread

SKU: SKU: 2968030000   Download PDF

Select a Variant:
  • 2968030000 - M12 5-Pole Female Socket with 0.2m Cable, M16 Thread
Qty:
Regular price Now $21.36   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $21.36 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

This product is equipped with M12 female sockets that are perfect for straight connections, boasting an M 16 x 15 mounting thread It features a 5-pole configuration and comes with a 02 m cable length, making it ideal for rear panel mounting applications.

Features and Benefits:

    •Gold-plated contact surface.

    •Zinc diecast housing.

    •Compliant with RoHS and REACH regulations.

    •Protection degree IP65, IP67, and IP68 when screwed in.

    •Temperature range for housing from -40 to +85 °C.

Specifications:

 Core cross-section 2.5 mm²

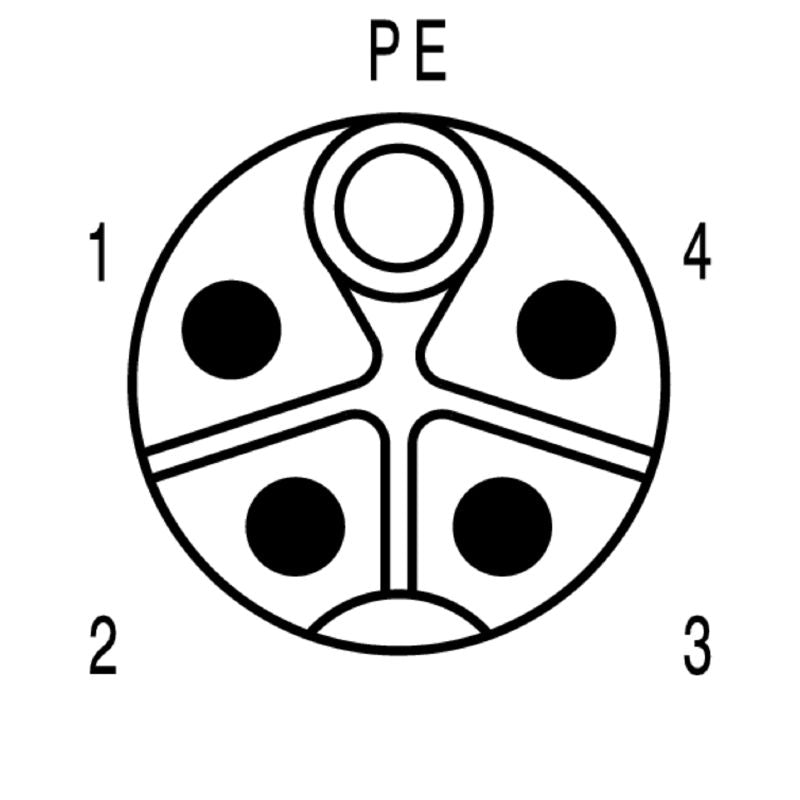

 Number of poles 5 (4 + PE)
 Nominal current 12 A
 Nominal voltage 630 V
 Plugging cycles ≥ 100
 Pollution severity 3
 Insulation resistance ≥ 100 MΩ
 Strand / cable length 0.2 m
 Housing main material Zinc diecast
 Connection thread M12

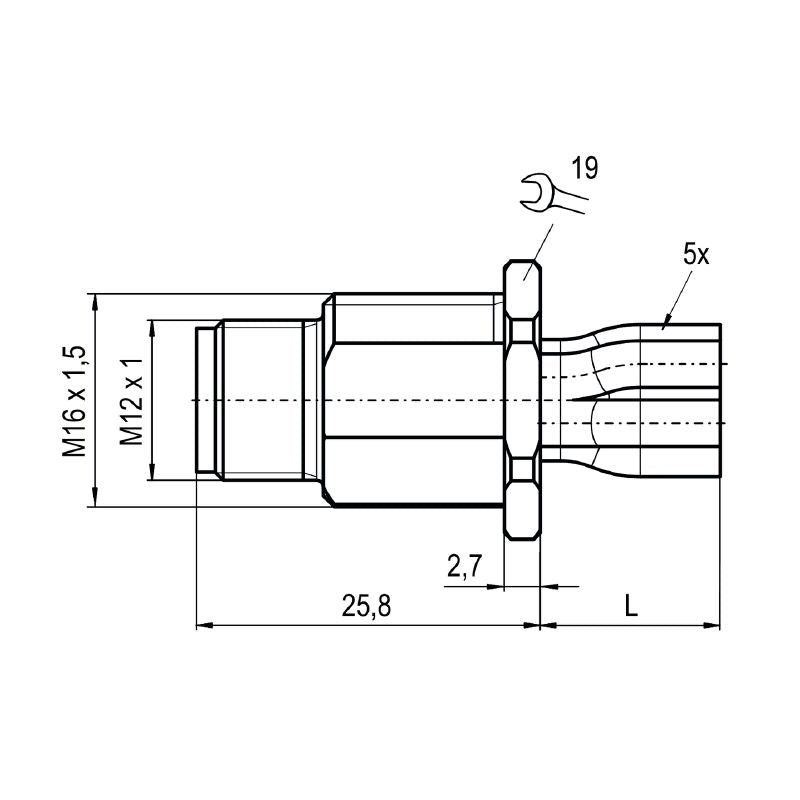

 Mounting thread M 16 x 1.5
 Tightening torque 1 Nm
 Mounting torque max.: 2 Nm
 Coding K-coded
 Temperature range of housing -40 … +85 °C
 Connector standard IEC 61076-2-111
