2812820100 - 1m Unshielded M12 Sensor/Actuator Cable with 5 Poles

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

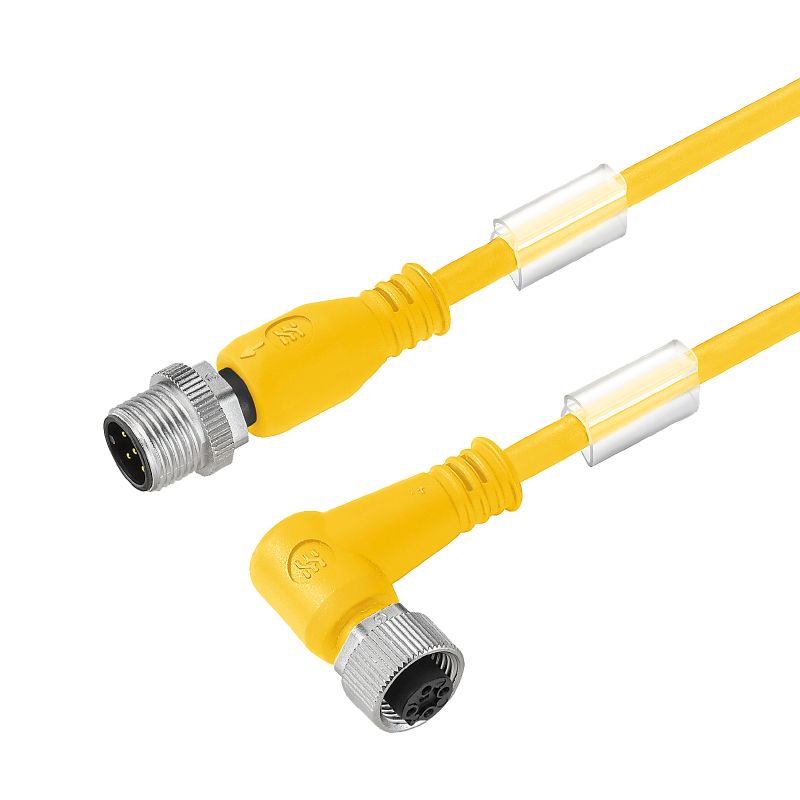

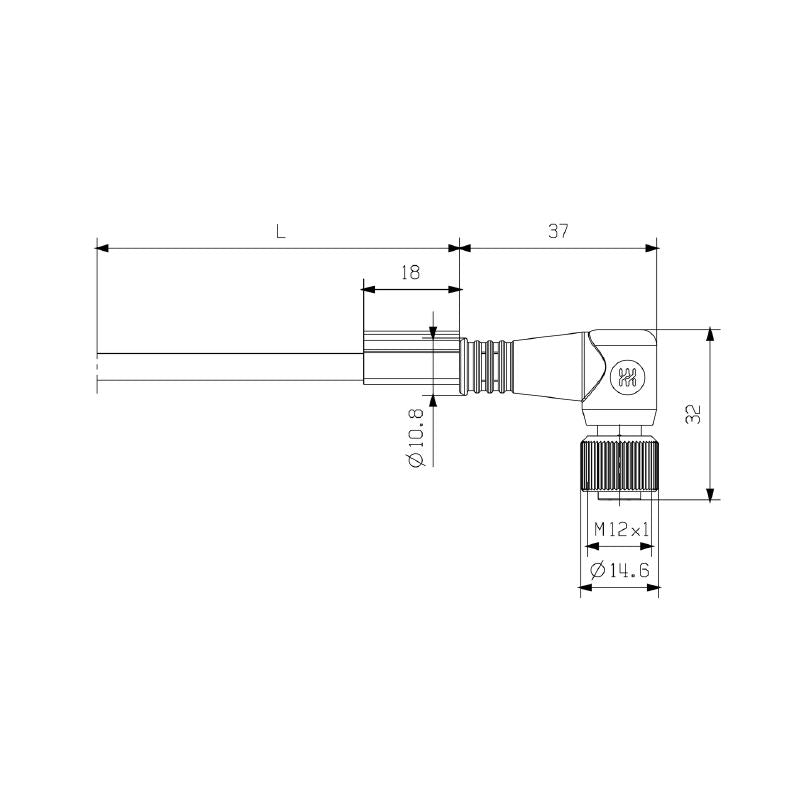

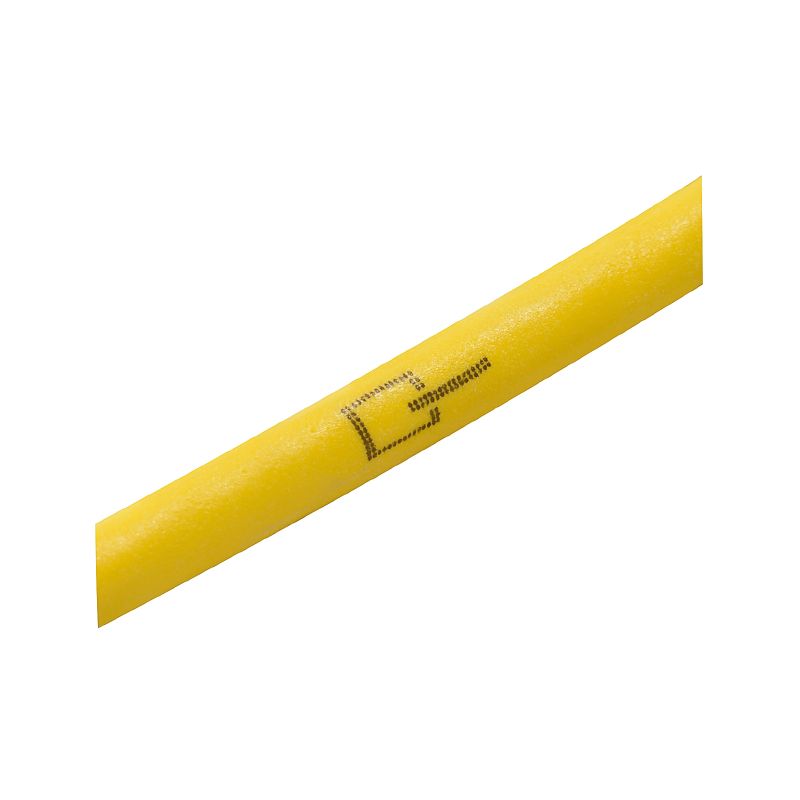

Introducing a versatile sensor and actuator line featuring robust M12 connectors, this product boasts five poles and a cable length of 1 meter It is designed with a straight socket and incorporates a 90-degree angle for flexible installation The unshielded cable is crafted from halogen-free PUR sheath material, ensuring safety and compliance with RoHS standards, with an exemption noted Enhanced with TPE insulation and gold-plated contact surfaces, this cable is optimal for both stationary and dynamic applications, capable of withstanding a range of temperatures for reliable performance in various environments.

Features and Benefits:

•Bending cycles: 10 million.

•Number of poles: 5.

•Nominal current: 4 A.

•Nominal voltage: 60 V.

•Protection degree: IP65, IP66, IP67, IP68 when screwed in.

•Temperature range, moving: -40...105 °C.

•Temperature range, stationary: -30...105 °C.

•Resistance to welding beads.

•LABS-free product.
