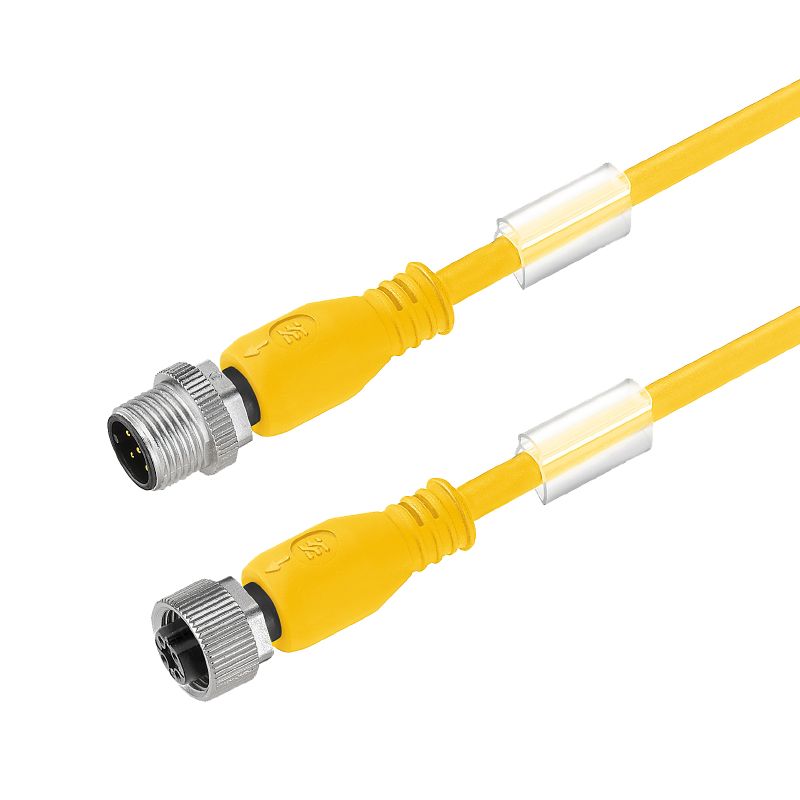

2812800100 - M12 5-Pole Sensor/Actuator Line Connector, 1m PUR Sheath

2812800100 - M12 5-Pole Sensor/Actuator Line Connector, 1m PUR Sheath

SKU: SKU: 2812800100   Download PDF

Select a Variant:
  • 2812800100 - M12 5-Pole Sensor/Actuator Line Connector, 1m PUR Sheath
Qty:
Regular price Now $14.13   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $14.13 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Discover the versatility of this M12 sensor/actuator line connector, boasting 5 poles and a length of 1 meter Designed with straight pin and socket connectors, this unshielded connector is crafted from durable PUR sheath material Benefits from RoHS compliance with a noted exemption, it also carries a range of environmental compliance certifications, making it a reliable choice for your connectivity needs.

Features and Benefits:

    •Compliant with RoHS with exemption.

    •Temperature range for moving applications from -40 to 105 °C.

    •Temperature range for stationary applications from -30 to 105 °C.

    •Resistance to oils and welding sparks.

    •IP65, IP66, IP67, and IP68 protection when securely installed.

    •Gold-plated contact surface.

    •Torsion resistance of 360°/m.

Specifications:

 Cable length 1 m
 Core cross-section 0.34 mm²
 Number of poles 5
 Sheath material PUR
 Shielded No
 Nominal current 4 A
 Nominal voltage 60 V
 Protection degree IP65, IP66, IP67, IP68 when screwed in
 Temperature range of housing -25…+85 °C
 Tightening torque M12: 0.8 - 1.2 Nm
