2812800060 - 0.6m M12 Connector Cable, 5 Poles, PUR Material

2812800060 - 0.6m M12 Connector Cable, 5 Poles, PUR Material

SKU: SKU: 2812800060   Download PDF

Select a Variant:
  • 2812800060 - 0.6m M12 Connector Cable, 5 Poles, PUR Material
Qty:
Regular price Now $13.50   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $13.50 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

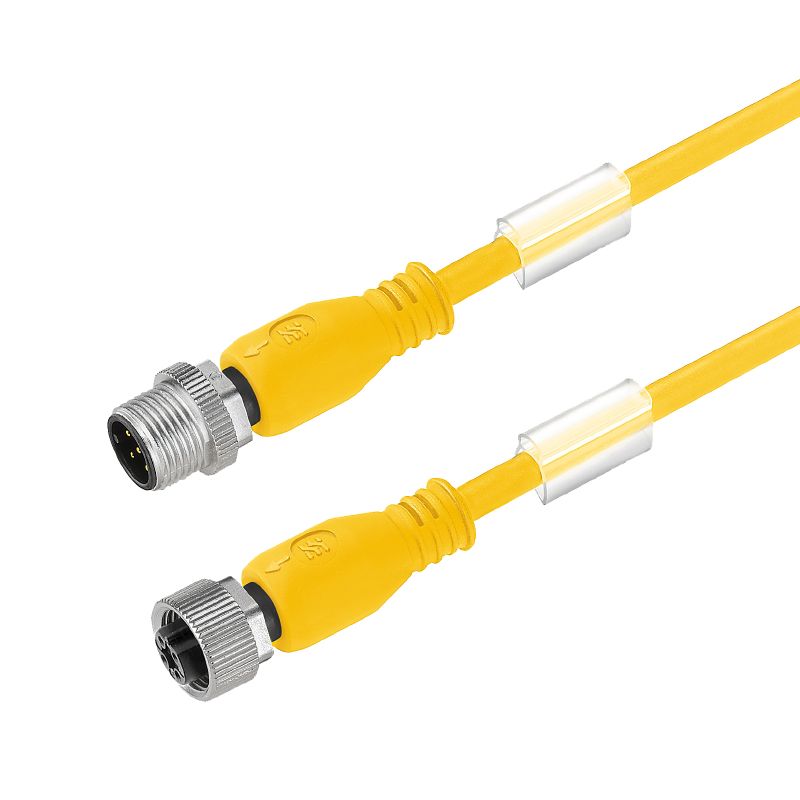

Introducing a versatile sensor/actuator cable featuring a robust M12 configuration with 5 poles Measuring 06 meters in length, this cable comes equipped with a straight socket and cable design Crafted from durable PUR material, it is free from halogen content and does not include shielding or LED features Perfect for your sensor and actuator needs, this product combines reliability with functional design.

Features and Benefits:

    •Shielded: No.

    •LED: No.

    •Halogen: No.

    •Resistance to oils: according to IEC 60811:404.

    •Resistant to welding beads: Yes.

    •Suitable for cable carriers: Yes.

    •Welding spark resistance: Yes.

Specifications:

 Cable length 0.6 m
 Core cross-section 0.34 mm²
 Number of poles 5
 Insulation TPE

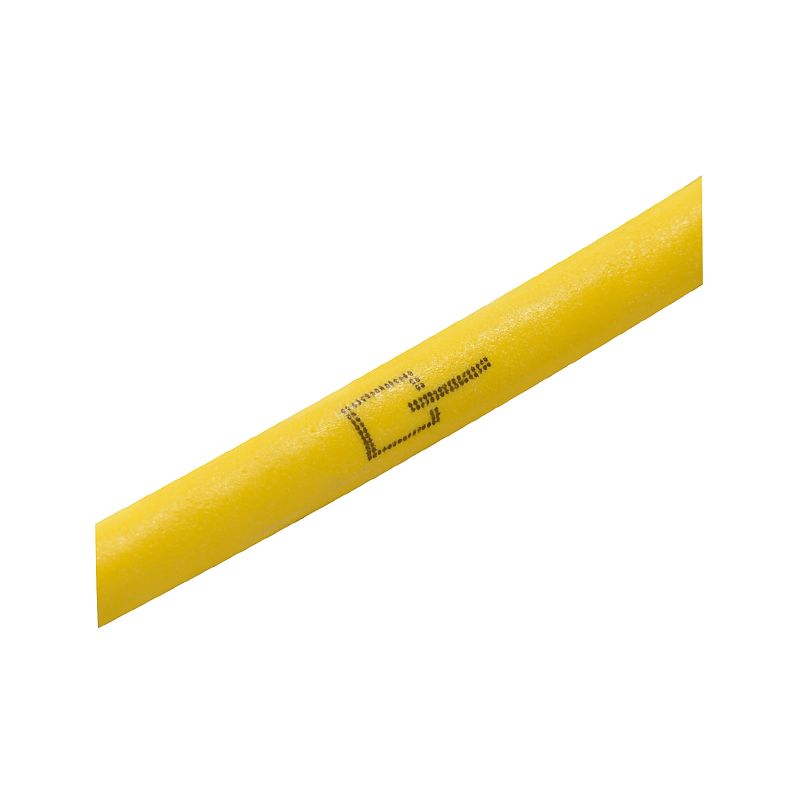

 Sheath material PUR
 Temperature range, moving -40...105 °C
 Temperature range, stationary -30...105 °C
 Protection degree IP65, IP66, IP67, IP68 when screwed in
 Nominal current 4 A
 Nominal voltage 60 V
 Contact surface Gold-plated
 Connection thread M12 / M12
 Housing main material PUR
 Tightening torque M12: 0.8 - 1.2 Nm
