2812780100 - M12 5-Pole Sensor/Actuator Line, 1m PUR Cable

2812780100 - M12 5-Pole Sensor/Actuator Line, 1m PUR Cable

SKU: SKU: 2812780100   Download PDF

Select a Variant:
  • 2812780100 - M12 5-Pole Sensor/Actuator Line, 1m PUR Cable
Qty:
Regular price Now $7.87   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $7.87 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

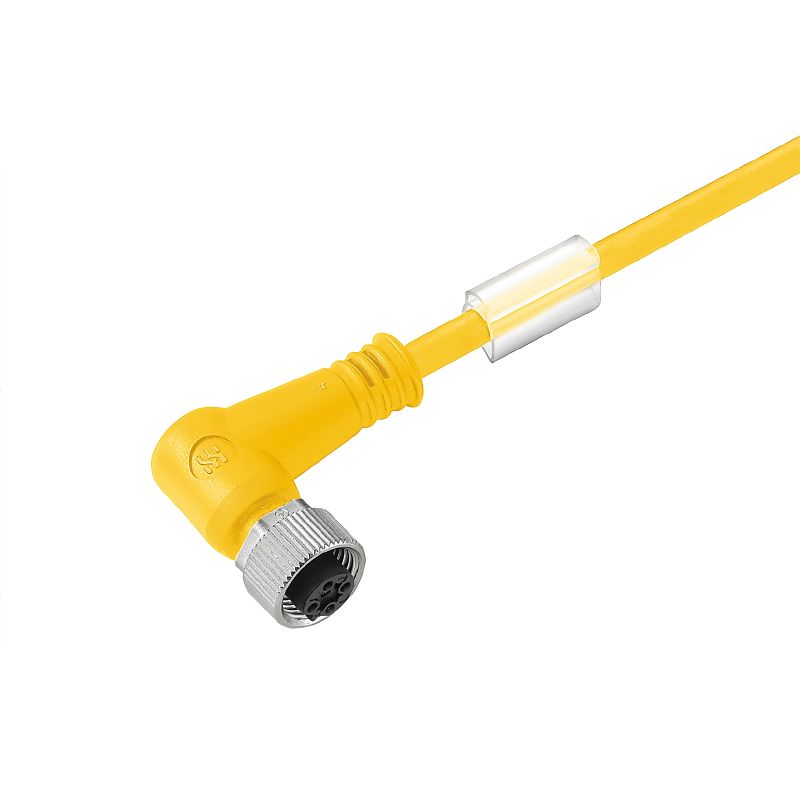

Introducing the SAIL-M12BW-5-10TYV, a 1-meter sensor/actuator cable designed with a practical 5-pole angled socket This unshielded line is halogen-free and engineered with a durable PUR sheath, ensuring reliability in various applications It adheres to ROHS standards and is UL certified (E307231), making it a trusted choice for your electronic connectivity needs.

Features and Benefits:

    •Operating temperature range of -40 to 105 °C.

    •Bending cycle life rated at 10 million cycles.

    •Resistance to oil according to IEC 60811:404.

    •Welding spark resistance.

    •IP65, IP66, IP67, and IP68 protection when properly installed.

    •Gold-plated contact surface.

Specifications:

 Cable length 1 m
 Core cross-section 0.34 mm²
 Outside diameter 5.2 mm ± 0.2 mm
 Nominal current 4 A
 Nominal voltage 60 V
 Protection degree IP65, IP66, IP67, IP68 when screwed in
 Temperature range of housing -25 to +85 °C
 Threaded ring material Brass, nickel-plated
 Tightening torque M12: 0.8 - 1.2 Nm
 Version Socket, angled
 LED No
 Halogen No
 Coding A-coded
 Housing main material PUR
 Connection thread M12
