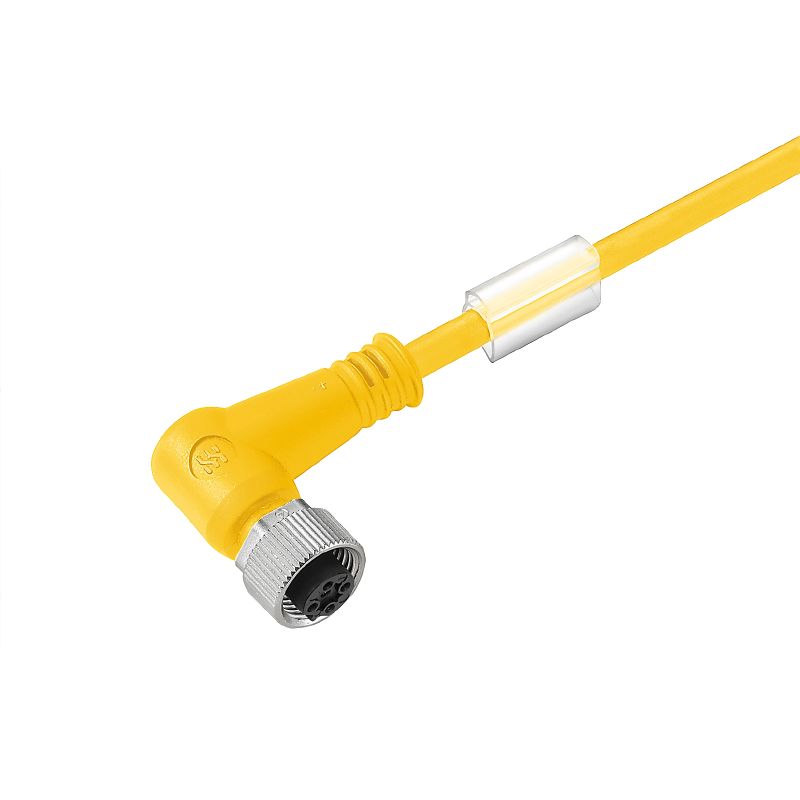

2812780060 - M12 0.6m 5-Pole PUR Sensor/Actuator Line, Angled Socket

2812780060 - M12 0.6m 5-Pole PUR Sensor/Actuator Line, Angled Socket

SKU: SKU: 2812780060   Download PDF

Select a Variant:
  • 2812780060 - M12 0.6m 5-Pole PUR Sensor/Actuator Line, Angled Socket
Qty:
Regular price Now $7.23   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $7.23 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Discover the versatile M12 sensor or actuator line product featuring 5 poles and a length of 06 meters This angled socket is designed without shielding or an LED indicator Crafted from PUR, the sheath is free of halogens and adheres to key industry standards including RoHS and cULus, making it a reliable choice for various applications.

Features and Benefits:

    •Net weight of 80 g.

    •Compliant with RoHS exemption.

    •Resistant to oils according to IEC 60811:404.

    •Suitable for cable carriers.

    •Welding spark resistance.

    •A-coded connection thread.

    •Gold-plated contact surface.

    •Protection degree IP65, IP66, IP67, and IP68 when screwed in.

Specifications:

 Cable length 0.6 m
 Core cross-section 0.34 mm²
 Number of poles 5
 Sheath material PUR
 Temperature range, moving -40...105 °C
 Temperature range, stationary -30...105 °C
 Nominal current 4 A
 Nominal voltage 60 V
 Protection degree IP65, IP66, IP67, IP68 when screwed in
 Tightening torque M12: 0.8 - 1.2 Nm
 Connection thread M12
 Housing main material PUR
